8115 Kramer 8115 Specifications & Technical Data (2021—2023)

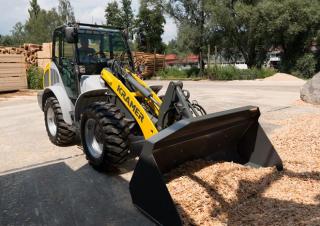

The Kramer 8115 is a wheel loader manufactured by Kramer since 2021. It has a weight of 6.05 tons and a transport length of 5.8 me…

The Kramer 8115 is a wheel loader manufactured by Kramer since 2021. It has a weight of 6.05 tons and a transport length of 5.8 meters. The bucket capacity is 1.15 cubic meters with a width of 2.15 meters. The maximum discharge height is 2.65 meters and it has a travel speed of 20 km/h. The transport width is 1.97 meters and the transport height is 2.68 meters. The lifting force is 46.5 kN and the turning radius outside is 2.95 meters. The machine is equipped with a diesel particulate filter, quick hitch hydraulic, and quick hitch mechanical. The maximum bucket capacity is 1.8 cubic meters, while the minimum is 1.15 cubic meters.

8115

Years of manufacture: 2021—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 8115 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.05 t

Standard tyres: 405/70-24

Bucket width: 2.15 m

Bucket capacity: 1.15 m³

Bucket capacity min.: 1.15 m³

Bucket capacity max.: 1.8 m³

Steering mode: AL

Transport length: 5.8 m

Transport width: 1.97 m

Transport height: 2.68 m

Travel speed: 20 km/h

Max. discharge height: 2.65 m

Turning radius outside: 2.95 m

Lifting force: 46.5 kN

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Displacement: 2.925 l

Revolutions at max torque: 1600 rpm

Max. torque: 300/1600 Nm

No. of cylinders: 4

Cylinder bore x stroke: 92x110 mm

Emission level: EU V

More technical details, like: model series, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: Yes

Download datasheets (PDF)

Kramer 8115 FAQ

When was the Kramer 8115 wheel loader manufactured?

The Kramer 8115 wheel loader was manufactured from 2021 to 2023.

How much does the Kramer 8115 wheel loader weigh?

The Kramer 8115 wheel loader weighs 6.05 tons.

What are the transport dimensions of the Kramer 8115 wheel loader?

The Kramer 8115 has a transport length of 5.8 meters, a transport width of 1.97 meters, and a transport height of 2.68 meters.

What is the travel speed of the Kramer 8115 wheel loader?

The Kramer 8115 wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the Kramer 8115 wheel loader?

The Kramer 8115 wheel loader is equipped with standard tyres sized 405/70-24.

What are the maneuverability specifications of the Kramer 8115 wheel loader?

The Kramer 8115 wheel loader has an outside turning radius of 2.95 meters and features all-wheel steering.

What are the power ratings of the Kramer 8115 wheel loader?

The source data does not provide power rating information for the Kramer 8115 wheel loader.

What is the maximum discharge height of the Kramer 8115?

The Kramer 8115 has a maximum discharge height of 2.65 meters.

What are the bucket specifications of the Kramer 8115 wheel loader?

The Kramer 8115 wheel loader has a bucket capacity ranging from 1.15 to 1.8 cubic meters and a bucket width of 2.15 meters.
