5065 T Kramer 5065 T Specifications & Technical Data (2015—2021)

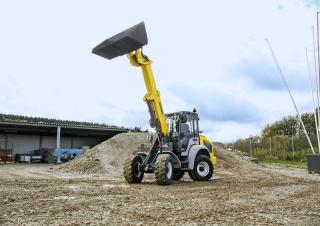

The Kramer 5065 T is a wheel loader manufactured by Kramer from 2015 to 2021. It has a weight of 4.35 tons and a transport length …

The Kramer 5065 T is a wheel loader manufactured by Kramer from 2015 to 2021. It has a weight of 4.35 tons and a transport length of 5.35 meters. The bucket capacity is 0.65 cubic meters with a width of 1.95 meters. The maximum discharge height is 3.5 meters and it has a travel speed of 20 km/h. The transport width is 1.65 meters and the transport height is 2.47 meters. The turning radius outside is 2.9 meters. The bucket capacity remains constant at 0.65 cubic meters. It is equipped with a quick hitch hydraulic system and telescopic capabilities.

5065 T

Years of manufacture: 2015—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 5065 T Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.35 t

Standard tyres: 12.0-18

Bucket width: 1.95 m

Bucket capacity: 0.65 m³

Bucket capacity min.: 0.65 m³

Steering mode: AL

Transport length: 5.35 m

Transport width: 1.65 m

Transport height: 2.47 m

Travel speed: 20 km/h

Max. discharge height: 3.5 m

Turning radius outside: 2.9 m

Engine manuf.: Yanmar

Engine type: 4TNV88

Engine power: 35 kW

Emission level: Tier 3 a

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

5065 T Kramer Specification for Europe (DE)

Kramer 5065 T FAQ

When was the Kramer 5065 T manufactured?

The Kramer 5065 T was manufactured from 2015 to 2021.

How much does the Kramer 5065 T wheel loader weigh?

The Kramer 5065 T wheel loader weighs 4.35 tons.

What are the transport dimensions of the Kramer 5065 T wheel loader?

The Kramer 5065 T has a transport length of 5.35 meters, a transport width of 1.65 meters, and a transport height of 2.47 meters.

What is the travel speed of the Kramer 5065 T wheel loader?

The Kramer 5065 T has a travel speed of 20 km/h.

What is the standard tyre size of the Kramer 5065 T wheel loader?

The Kramer 5065 T wheel loader has standard tyres sized 12.0-18.

What are the maneuverability specifications of the Kramer 5065 T wheel loader?

The Kramer 5065 T has an outside turning radius of 2.9 meters and features all-wheel steering.

What is the material handling capacity of the Kramer 5065 T in terms of discharge height?

The Kramer 5065 T has a maximum discharge height of 3.5 meters for material handling.

What are the bucket specifications of the Kramer 5065 T wheel loader?

The Kramer 5065 T wheel loader has a bucket capacity of 0.65 cubic meters, a minimum bucket capacity of 0.65 cubic meters, and a bucket width of 1.95 meters.
