5055 Kramer 5055 Specifications & Technical Data (2014—2021)

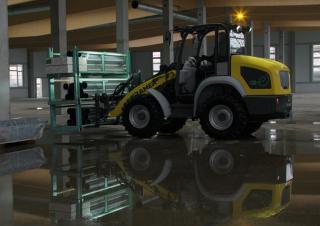

The Kramer 5055 is a wheel loader manufactured by Kramer from 2014 to 2021. It has a weight of 3.45 tons and a transport length of…

The Kramer 5055 is a wheel loader manufactured by Kramer from 2014 to 2021. It has a weight of 3.45 tons and a transport length of 4.95 meters. The bucket capacity is 0.35 cubic meters with a bucket width of 1.65 meters. The maximum discharge height is 2.32 meters and it has a travel speed of 20 km/h. The transport width and height are both 1.65 meters and 2.38 meters respectively. The turning radius outside is 2.7 meters. The machine is equipped with a quick hitch hydr. for special operations. The bucket capacity ranges from 0.35 cubic meters to a maximum of 0.65 cubic meters.

Wheel Loaders Kramer 5055

Visit Kramer live at

Technical specs - 5055 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.45 t
Standard tyres
10.5-18
Bucket width
1.65 m
Bucket capacity
0.35 m³
Bucket capacity min.
0.35 m³
Bucket capacity max.
0.65 m³
Steering mode
AL
Transport length
4.95 m
Transport width
1.65 m
Transport height
2.38 m
Travel speed
20 km/h
Max. discharge height
2.32 m
Turning radius outside
2.7 m
Engine manuf.
Yanmar
Engine type
4TNV88
Engine power
35 kW
Emission level
Tier 3 a

More technical details, like: lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Kramer 5055 FAQ

When was the Kramer 5055 wheel loader manufactured?

The Kramer 5055 wheel loader was manufactured from 2014 to 2021.

How much does the Kramer 5055 wheel loader weigh?

The Kramer 5055 wheel loader weighs 3.45 tons.

What are the transport dimensions of the Kramer 5055 wheel loader?

The Kramer 5055 has a transport length of 4.95 meters, a transport width of 1.65 meters, and a transport height of 2.38 meters.

What is the travel speed of the Kramer 5055 wheel loader?

The Kramer 5055 wheel loader has a travel speed of 20 km/h.

What are the standard tyre specifications for the Kramer 5055 wheel loader?

The Kramer 5055 wheel loader is equipped with standard tyres sized 10.5-18.

What are the maneuverability specifications of the Kramer 5055 wheel loader?

The Kramer 5055 wheel loader has an outside turning radius of 2.7 meters and features all-wheel steering.

What is the maximum discharge height of the Kramer 5055?

The Kramer 5055 has a maximum discharge height of 2.32 meters.

What are the specifications of the bucket on the Kramer 5055 wheel loader?

The Kramer 5055 wheel loader has a bucket with a capacity ranging from 0.35 to 0.65 cubic meters and a width of 1.65 meters.

How much is a Kramer 5055 Wheel loader (2014u20132021) worth?

The residual value of the Kramer 5055 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
