250 Kramer 250 Specifications & Technical Data (2007—2011)

Model rating: 7,00 / 10

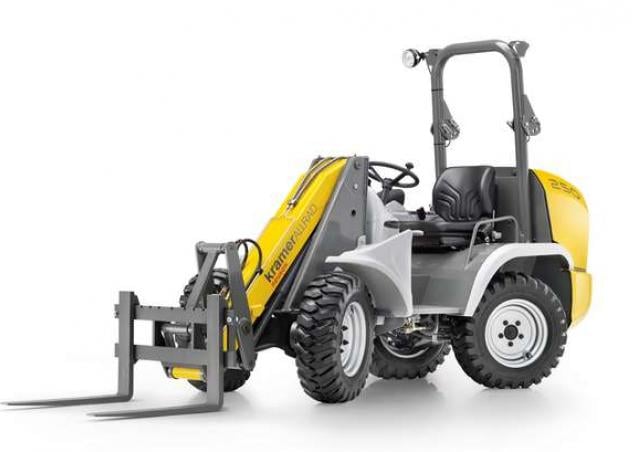

The Kramer 250 is a wheel loader manufactured from 2007 to 2011. It has a weight of 1.54 tons and a transport length of 3.89 meter…

The Kramer 250 is a wheel loader manufactured from 2007 to 2011. It has a weight of 1.54 tons and a transport length of 3.89 meters. The bucket capacity is 0.25 cubic meters, with a bucket width of 1.25 meters. The maximum discharge height is 2.29 meters, and it has a travel speed of 20 km/h. The transport width is 1.2 meters, and the transport height is 1.98 meters. The turning radius outside is 1.97 meters. Special equipment includes a quick hitch mechanism.

250

Years of manufacture: 2007—2011

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 250 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.54 t

Standard tyres: 27x8.5-15

Bucket width: 1.25 m

Bucket capacity: 0.25 m³

Bucket capacity min.: 0.25 m³

Steering mode: AL

Transport length: 3.89 m

Transport width: 1.2 m

Transport height: 1.98 m

Travel speed: 20 km/h

Max. discharge height: 2.29 m

Turning radius outside: 1.97 m

Engine manuf.: Yanmar

Engine type: 3TNV77

Engine power: 16 kW

Displacement: 1.116 l

Revolutions at max torque: 1000 rpm

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Kramer 250 FAQ

When was the Kramer 250 manufactured?

The Kramer 250 was manufactured from 2007 to 2011.

How much does the Kramer 250 wheel loader weigh?

The Kramer 250 wheel loader weighs 1.54 tons.

What are the transport dimensions of the Kramer 250 wheel loader?

The Kramer 250 has a transport length of 3.89 meters, a transport width of 1.2 meters, and a transport height of 1.98 meters.

What is the travel speed of the Kramer 250 wheel loader?

The Kramer 250 has a travel speed of 20 km/h.

What are the undercarriage specifications of the Kramer 250 wheel loader?

The Kramer 250 wheel loader is equipped with standard tyres sized 27x8.5-15.

What are the maneuverability specifications of the Kramer 250 wheel loader?

The Kramer 250 wheel loader has an outside turning radius of 1.97 meters and features all-wheel steering.

What is the maximum discharge height of the Kramer 250?

The Kramer 250 has a maximum discharge height of 2.29 meters.

What are the specifications of the primary work tool bucket on the Kramer 250 wheel loader?

The Kramer 250 wheel loader has a bucket with a capacity of 0.25 cubic meters, a minimum bucket capacity of 0.25 cubic meters, and a bucket width of 1.25 meters.
