70Z V-2 Kawasaki 70Z V-2 Specifications & Technical Data (2010—2026)

The Kawasaki 70Z V-2 is a wheel loader manufactured since 2010. It has a weight of 14 tons and a bucket width of 2 meters. The max…

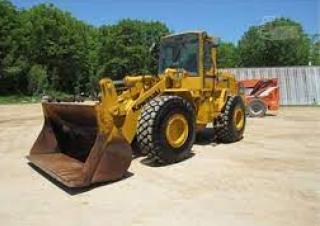

The Kawasaki 70Z V-2 is a wheel loader manufactured since 2010. It has a weight of 14 tons and a bucket width of 2 meters. The maximum discharge height is 3 meters, and it can travel at a speed of 37 km/h. The transport width and height are both 2 meters, and the turning radius outside is 6 meters. The bucket capacity ranges from 2 to 3 cubic meters.

Wheel Loaders Kawasaki 70Z V-2

Technical specs - 70Z V-2 Kawasaki

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.81 t
Standard tyres
20.5 x 25
Bucket width
2.68 m
Bucket capacity min.
2.1 m³
Bucket capacity max.
3.1 m³
Transport width
2.585 m
Transport height
3.335 m
Travel speed
37.5 km/h
Max. discharge height
3.2 m
Turning radius outside
6.225 m
Engine manuf.
Cummins
Engine type
QSB86.7
Engine power
143.9 kW
Displacement
6.7 l
Revolutions at max torque
1400 rpm
Max. torque
657 Nm
No. of cylinders
6
Cylinder bore x stroke
107 x 124 mm

More technical details, like: bucket capacity, steering mode, transport length, lifting force, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kawasaki 70Z V-2 FAQ

When was the Kawasaki 70Z V-2 manufactured?

The Kawasaki 70Z V-2 was first produced in 2010.

How much does the Kawasaki 70Z V-2 weigh?

The Kawasaki 70Z V-2 weighs 14.81 tons.

What are the transport dimensions of the Kawasaki 70Z V-2 wheel loader?

The Kawasaki 70Z V-2 has a transport width of 2.59 meters and a transport height of 3.34 meters.

What is the travel speed of the Kawasaki 70Z V-2 wheel loader?

The Kawasaki 70Z V-2 has a travel speed of 37.5 km/h.

What are the undercarriage specifications of the Kawasaki 70Z V-2 wheel loader?

The Kawasaki 70Z V-2 wheel loader is equipped with standard tyres sized 20.5 x 25.

What is the turning radius of the Kawasaki 70Z V-2 wheel loader?

The Kawasaki 70Z V-2 has an outside turning radius of 6.225 meters.

What is the maximum discharge height of the Kawasaki 70Z V-2?

The Kawasaki 70Z V-2 has a maximum discharge height of 3.2 meters.

What are the bucket specifications of the Kawasaki 70Z V-2 wheel loader?

The Kawasaki 70Z V-2 wheel loader has a bucket width of 2.68 meters, with a capacity ranging from 2.1 to 3.1 cubic meters.

How much is a Kawasaki 70Z V-2 Wheel loader (2010u20132025) worth?

The residual value of the Kawasaki 70Z V-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
