65TM V-2 Kawasaki 65TM V-2 Specifications & Technical Data (2011—2026)

The Kawasaki 65TM V-2 is a wheel loader manufactured since 2011. It has a weight of 12 tons and a bucket width of 2 meters. The ma…

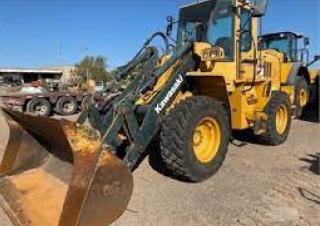

The Kawasaki 65TM V-2 is a wheel loader manufactured since 2011. It has a weight of 12 tons and a bucket width of 2 meters. The maximum discharge height is 2 meters and it can travel at a speed of 37 km/h. The transport width is 2 meters and the transport height is 3 meters. It has a turning radius outside of 5 meters. The bucket capacity ranges from a minimum of 1 cubic meter to a maximum of 1 cubic meter.

65TM V-2

Years of manufacture: 2011—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 65TM V-2 Kawasaki

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.23 t

Standard tyres: 17.5 x 25

Bucket width: 2.45 m

Bucket capacity min.: 1.5 m³

Bucket capacity max.: 1.9 m³

Transport width: 2.405 m

Transport height: 3.27 m

Travel speed: 37 km/h

Max. discharge height: 2.95 m

Turning radius outside: 5.725 m

Engine manuf.: Isuzu

Engine type: 4HKIX

Engine power: 114.8 kW

Displacement: 5.193 l

Revolutions at max torque: 1500 rpm

Max. torque: 431 Nm

No. of cylinders: 4

Cylinder bore x stroke: 115 x 125 mm

More technical details, like: bucket capacity, steering mode, transport length, lifting force, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

65TM V-2 Kawasaki Specification for North America (EN)

Kawasaki 65TM V-2 FAQ

When was the Kawasaki 65TM V-2 manufactured?

The Kawasaki 65TM V-2 was first produced in 2011.

How much does the Kawasaki 65TM V-2 wheel loader weigh?

The Kawasaki 65TM V-2 wheel loader weighs 12.23 tons.

What are the transport dimensions of the Kawasaki 65TM V-2 wheel loader?

The Kawasaki 65TM V-2 has a transport width of 2.41 meters and a transport height of 3.27 meters.

What is the travel speed of the Kawasaki 65TM V-2 wheel loader?

The Kawasaki 65TM V-2 has a travel speed of 37 km/h.

What is the standard tyre size of the Kawasaki 65TM V-2 wheel loader?

The Kawasaki 65TM V-2 wheel loader has standard tyres sized 17.5 x 25.

What is the turning radius of the Kawasaki 65TM V-2 wheel loader?

The Kawasaki 65TM V-2 has an outside turning radius of 5.725 meters.

What is the material handling capacity of the Kawasaki 65TM V-2 in terms of discharge height?

The Kawasaki 65TM V-2 has a maximum discharge height of 2.95 meters for material handling.

What are the bucket specifications of the Kawasaki 65TM V-2 wheel loader?

The Kawasaki 65TM V-2 wheel loader has a bucket width of 2.45 meters, with a capacity ranging from 1.5 to 1.9 cubic meters.

How much is a Kawasaki 65TM V-2 Wheel loader (2011u20132025) worth?

The residual value of the Kawasaki 65TM V-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
