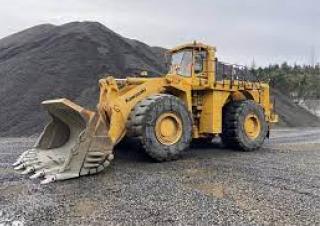

135Z V Kawasaki 135Z V Specifications & Technical Data (2004—2012)
Technical specs - 135Z V Kawasaki
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 81.05 t
- Standard tyres
- 41.25/70-39
- Bucket width
- 4.52 m
- Bucket capacity min.
- 7.5 m³
- Bucket capacity max.
- 10.3 m³
- Transport width
- 4.16 m
- Transport height
- 4.945 m
- Travel speed
- 30 km/h
- Max. discharge height
- 4.9 m
- Turning radius outside
- 9.96 m
- Engine manuf.
- Cummins
- Engine type
- QST30
- Engine power
- 536.9 kW
- Displacement
- 30.5 l
- Revolutions at max torque
- 1300 rpm
- Max. torque
- 2400 Nm
- No. of cylinders
- 12
- Cylinder bore x stroke
- 190 x 165 mm
More technical details, like: bucket capacity, steering mode, transport length, lifting force, model series, dimension lxwxh, emission level are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
No
- Swing loader
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
