WL56 John Deere Construction WL56 Specifications & Technical Data (2022—2026)

The John Deere Construction WL56 is a wheel loader that has been manufactured since 2022. It has a weight of 16.783 tons and a tra…

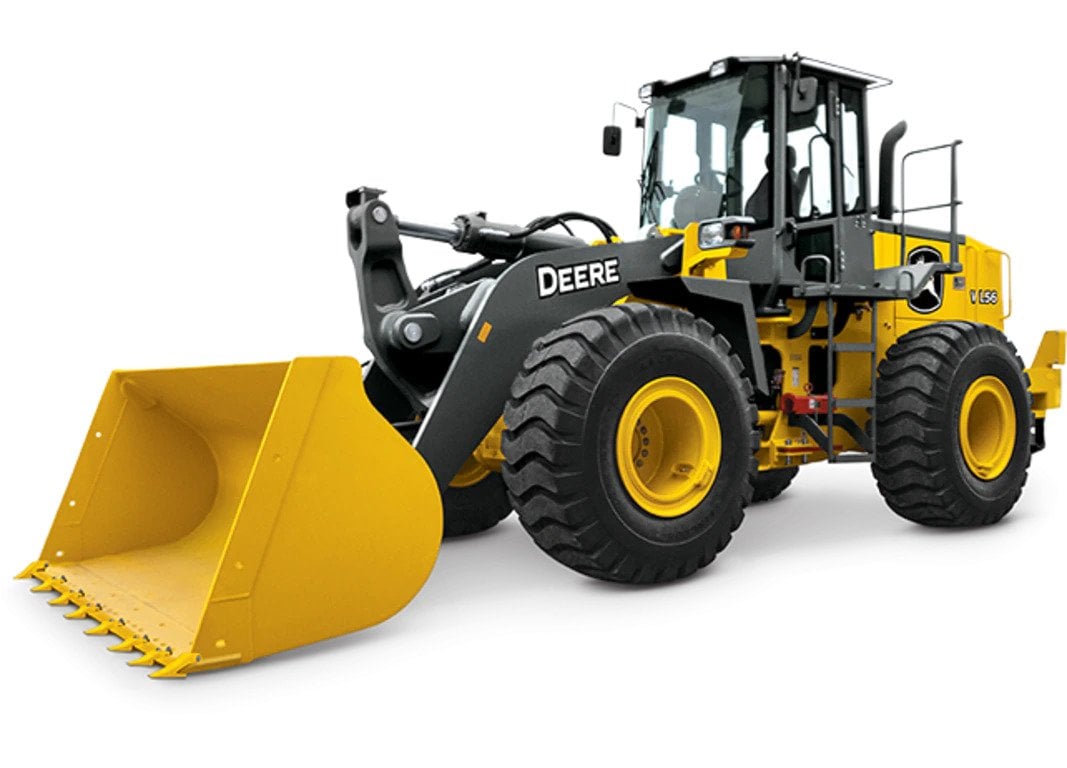

The John Deere Construction WL56 is a wheel loader that has been manufactured since 2022. It has a weight of 16.783 tons and a transport length of 8.666 meters. The bucket capacity is 3.1 cubic meters, with a bucket width of 2.963 meters. The maximum discharge height is 4.501 meters, and it has a travel speed of 40 km/h. The transport width is 2.963 meters, and the transport height is 3.436 meters. The turning radius outside is 6.691 meters. The bucket capacity ranges from a minimum of 2.8 cubic meters to a maximum of 3.7 cubic meters.

WL56

Years of manufacture: 2022—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - WL56 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16.783 t

Standard tyres: 45800

Bucket width: 2.963 m

Bucket capacity: 3.1 m³

Bucket capacity min.: 2.8 m³

Bucket capacity max.: 3.7 m³

Transport length: 8.666 m

Transport width: 2.963 m

Transport height: 3.436 m

Travel speed: 40 km/h

Max. discharge height: 4.501 m

Turning radius outside: 6.691 m

Engine manuf.: John Deere

Engine type: PowerTech 6068H

Engine power: 160 kW

Displacement: 6.8 l

Revolutions at max torque: 2200 rpm

Max. torque: 917 Nm

No. of cylinders: 6

Emission level: EU Stage II

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

John Deere Construction WL56 FAQ

When was the John Deere Construction WL56 manufactured?

The John Deere Construction WL56 was first produced in 2022.

How much does the John Deere Construction WL56 weigh?

The John Deere Construction WL56 weighs 16.78 tons.

What are the transport dimensions of the John Deere Construction WL56 wheel loader?

The John Deere Construction WL56 has a transport length of 8.67 meters, a transport width of 2.96 meters, and a transport height of 3.44 meters.

What is the travel speed of the John Deere Construction WL56 wheel loader?

The John Deere Construction WL56 has a travel speed of 40 km/h.

What are the standard tyres specifications of the John Deere Construction WL56?

The John Deere Construction WL56 has standard tyres with a specification value of 45800.

What is the turning radius of the John Deere Construction WL56 wheel loader?

The John Deere Construction WL56 has an outside turning radius of 6.691 meters.

What is the material handling capacity of the John Deere Construction WL56 in terms of discharge height?

The John Deere Construction WL56 has a maximum discharge height of 4.5 meters.

What are the specifications of the bucket on the John Deere Construction WL56 wheel loader?

The bucket of the John Deere Construction WL56 has a capacity of 3.1 mu00b3, with a maximum capacity of 3.7 mu00b3 and a minimum capacity of 2.8 mu00b3, and a width of 2.96 meters.

How much is a John Deere Construction WL56 Wheel loader (2022u20132025) worth?

The residual value of the John Deere Construction WL56 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

John Deere Construction WL56 overview

John Deere Construction WL56 features overview

Maintenance of WL56

The WL56 is simple and inexpensive to maintain. Service doors provide wide-open, convenient access to service points and filters to help speed daily checks and periodic maintenance.

Engine / Powertrain / Drivetrain

PowerShift Transmission Features

The automatic, electronic PowerShift transmission features four forward and three reverse speeds. Ground-level sight gauge and oil fill provide easy maintenance. Dependable hydraulic flow is provided by dual gear-type pumps. O-ring face-seal couplers virtually eliminate leaks.

Hydraulic system

John Deere PowerTech Engines

Hard-working, reliable John Deere PowerTech engines are coupled with an efficient cooling system to deliver dependable power that won’t let you down, even in the most extreme conditions.

Operator's cab

Rollover Protective Structure (ROPS) Cab

Spacious, comfortable Rollover Protective Structure (ROPS) cab provides everything an operator needs to stay productive during a long shift, including an adjustable high-back seat and plenty of storage space, complete with a beverage holder. Gauges on the front console are clearly visible, intuitive, and easy to read. Automotive-style directional louvers provide effective airflow to keep the glass clear and the cab comfortable.
