824 K John Deere Construction 824 K Specifications & Technical Data (2010—2021)

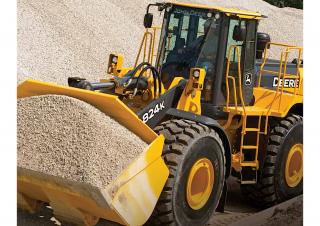

The John Deere Construction 824 K Wheel Loader, manufactured from 2010 to 2021, weighs 26.21 tons and has a transport length of 9.…

The John Deere Construction 824 K Wheel Loader, manufactured from 2010 to 2021, weighs 26.21 tons and has a transport length of 9.26 meters. It features a bucket width of 3.27 meters and a maximum bucket capacity of 5.2 cubic meters, with a minimum capacity of 4.6 cubic meters. The machine has a travel speed of 40 km/h and a transport width of 3.1 meters. Its transport height measures 3.5 meters, and it has a turning radius outside of 5.92 meters.

824 K

Years of manufacture: 2010—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 824 K John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 26.21 t

Standard tyres: 26.5 R25

Bucket width: 3.27 m

Bucket capacity min.: 4.6 m³

Bucket capacity max.: 5.2 m³

Transport length: 9.26 m

Transport width: 3.1 m

Transport height: 3.5 m

Travel speed: 40 km/h

Turning radius outside: 5.92 m

Model series: K

Engine manuf.: John Deere

Engine type: 6135H

Engine power: 248 kW

Displacement: 13.5 l

Max. torque: 1619 Nm

No. of cylinders: 6

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

John Deere Construction 824 K FAQ

When was the John Deere Construction 824 K manufactured?

The John Deere Construction 824 K was manufactured from 2010 to 2021.

How much does the John Deere Construction 824 K weigh?

The John Deere Construction 824 K weighs 26.21 tons.

What are the transport dimensions of the John Deere Construction 824 K wheel loader?

The John Deere Construction 824 K has a transport length of 9.26 meters, a transport width of 3.1 meters, and a transport height of 3.5 meters.

What is the travel speed of the John Deere Construction 824 K wheel loader?

The John Deere Construction 824 K has a travel speed of 40 km/h.

What is the standard tyre size of the John Deere Construction 824 K?

The John Deere Construction 824 K is equipped with standard tyres sized 26.5 R25.

What is the turning radius of the John Deere Construction 824 K wheel loader?

The John Deere Construction 824 K has an outside turning radius of 5.92 meters.

What are the bucket specifications of the John Deere Construction 824 K wheel loader?

The John Deere Construction 824 K wheel loader has a bucket capacity ranging from 4.6 to 5.2 cubic meters and a bucket width of 3.27 meters.

How much is a John Deere Construction 824 K Wheel loader (2010u20132021) worth?

The residual value of the John Deere Construction 824 K depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
