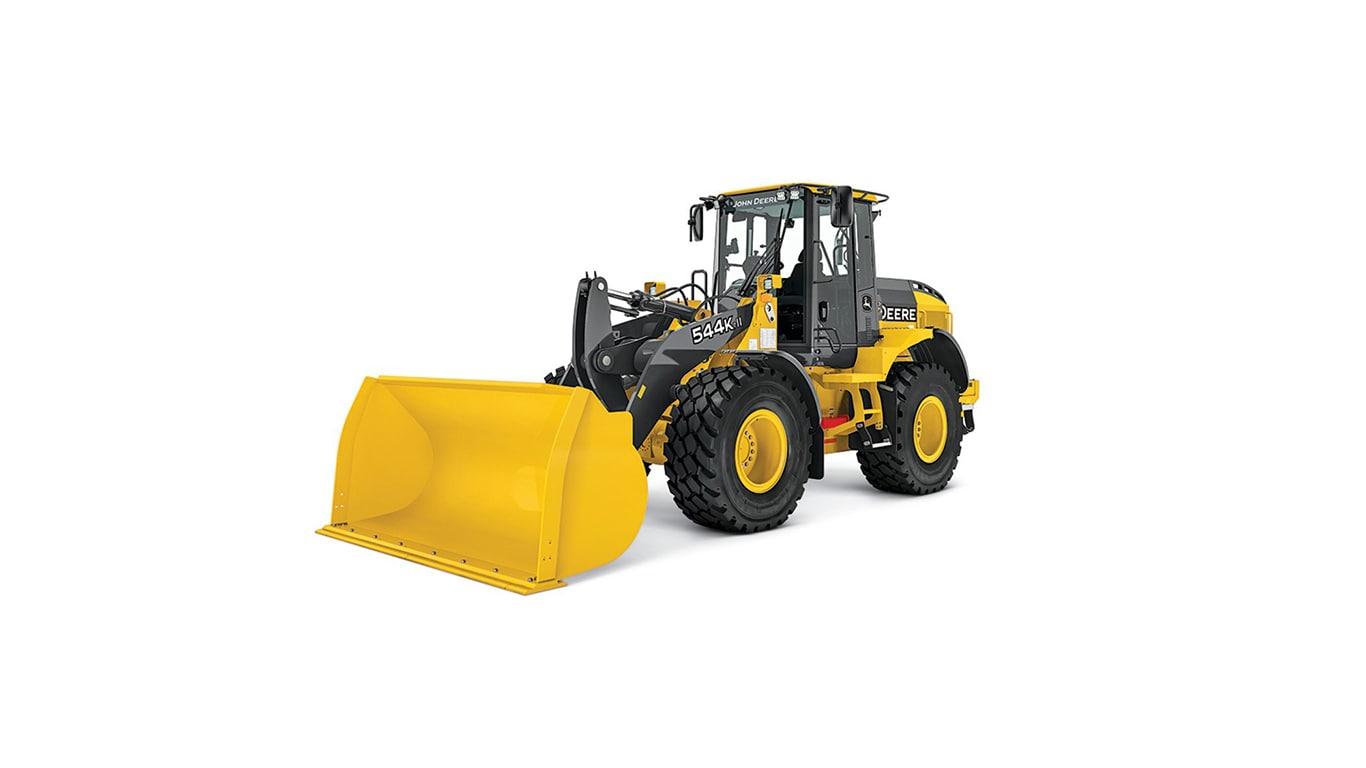

544K-II John Deere Construction 544K-II Specifications & Technical Data (2015—2019)

The John Deere Construction 544K-II is a wheel loader manufactured from 2015 to 2019. It has a weight of 13.22 tons and a transpor…

The John Deere Construction 544K-II is a wheel loader manufactured from 2015 to 2019. It has a weight of 13.22 tons and a transport length of 7.43 meters. The bucket width is 2.54 meters, and the maximum discharge height is 2.76 meters. It has a travel speed of 40 km/h and a transport width of 2.57 meters. The transport height is 3.24 meters, and the turning radius outside is 5 meters. The bucket capacity ranges from 2 to 4 cubic meters. Special equipment includes air conditioning.

544K-II

Years of manufacture: 2015—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 544K-II John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 13.22 t

Standard tyres: 20.5 R25

Bucket width: 2.54 m

Bucket capacity min.: 2 m³

Bucket capacity max.: 4 m³

Steering mode: AL

Transport length: 7.43 m

Transport width: 2.57 m

Transport height: 3.24 m

Travel speed: 40 km/h

Max. discharge height: 2.76 m

Turning radius outside: 5 m

Model series: K

Engine manuf.: John Deere

Engine type: PowerTech E 6068H

Engine power: 122 kW

Displacement: 6.8 l

Revolutions at max torque: 1900 rpm

Max. torque: 659/1600 Nm

No. of cylinders: 6

Emission level: Tier 3/EU IIIA

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

544K-II John Deere Construction Specification for North America (EN)

John Deere Construction 544K-II FAQ

When was the John Deere Construction 544K-II manufactured?

The John Deere Construction 544K-II was manufactured from 2015 to 2019.

How much does the John Deere Construction 544K-II wheel loader weigh?

The John Deere Construction 544K-II wheel loader weighs 13.22 tons.

What are the transport dimensions of the John Deere Construction 544K-II wheel loader?

The John Deere Construction 544K-II has a transport length of 7.43 meters, a transport width of 2.57 meters, and a transport height of 3.24 meters.

What is the travel speed of the John Deere Construction 544K-II wheel loader?

The John Deere Construction 544K-II has a travel speed of 40 km/h.

What are the undercarriage specifications of the John Deere Construction 544K-II wheel loader?

The John Deere Construction 544K-II wheel loader is equipped with standard tyres sized 20.5 R25.

What are the outside turning radius and steering mode of the John Deere Construction 544K-II?

The John Deere Construction 544K-II has an outside turning radius of 5 meters and features all-wheel steering.

What is the maximum discharge height of the John Deere Construction 544K-II wheel loader?

The John Deere Construction 544K-II wheel loader has a maximum discharge height of 2.76 meters.

What are the bucket specifications of the John Deere Construction 544K-II wheel loader?

The John Deere Construction 544K-II wheel loader has a bucket width of 2.54 meters, with a capacity ranging from 2 to 4 cubic meters.
