524K-II John Deere Construction 524K-II Specifications & Technical Data (2017—2019)

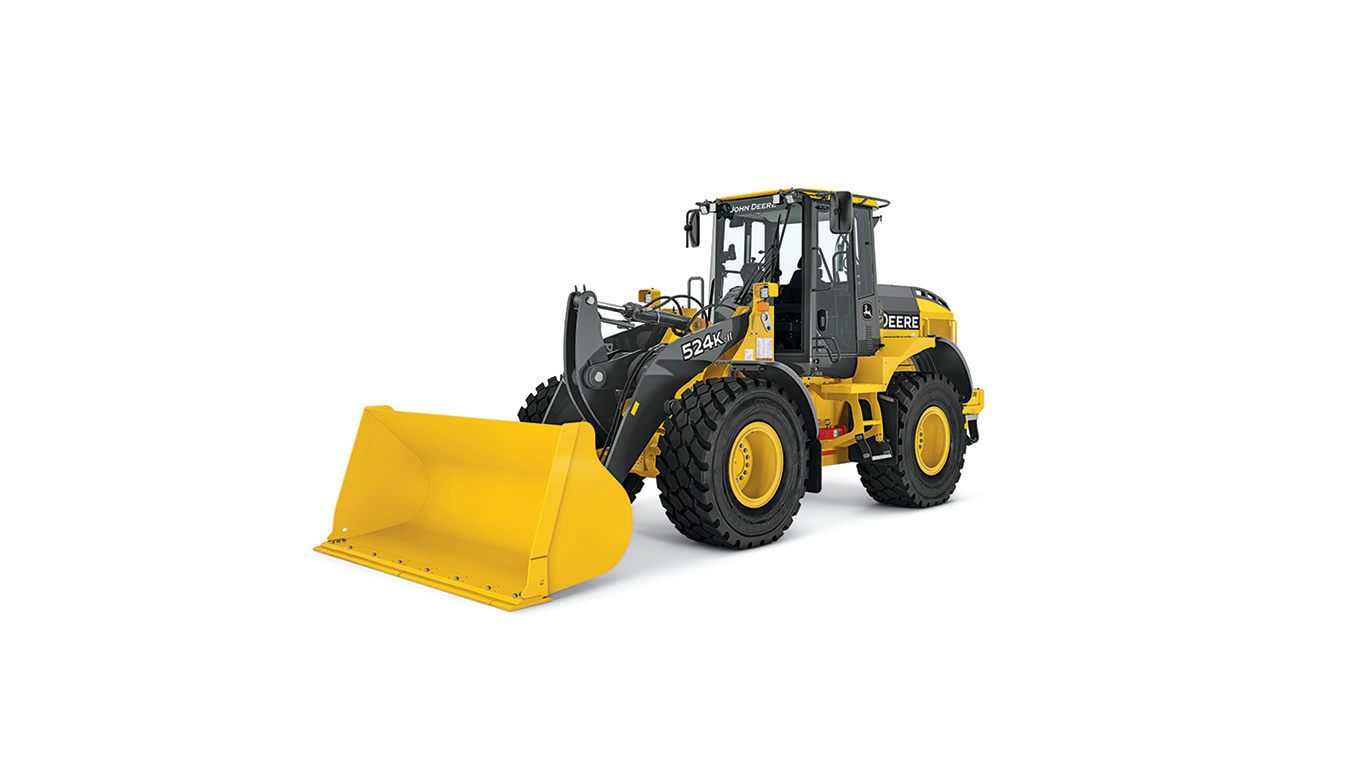

The John Deere Construction 524K-II is a wheel loader manufactured from 2017 to 2019. It has a weight of 12.67 tons and a transpor…

The John Deere Construction 524K-II is a wheel loader manufactured from 2017 to 2019. It has a weight of 12.67 tons and a transport length of 7.34 meters. The bucket width is 2.54 meters, and it has a maximum discharge height of 2.77 meters. The travel speed of this machine is 38.5 km/h. It has a transport width of 2.55 meters and a transport height of 3.25 meters. The turning radius outside is 5 meters. The bucket capacity ranges from a maximum of 2.4 cubic meters to a minimum of 1.7 cubic meters. It is equipped with air conditioning.

524K-II

Years of manufacture: 2017—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 524K-II John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.67 t

Standard tyres: 20.5 R25

Bucket width: 2.54 m

Bucket capacity min.: 1.7 m³

Bucket capacity max.: 2.4 m³

Steering mode: AL

Transport length: 7.34 m

Transport width: 2.55 m

Transport height: 3.25 m

Travel speed: 38.5 km/h

Max. discharge height: 2.77 m

Turning radius outside: 5 m

Model series: K

Engine manuf.: John Deere

Engine type: PowerTech PVS 6068

Engine power: 104 kW

Displacement: 6.8 l

Revolutions at max torque: 1900 rpm

Max. torque: 640/1100 Nm

No. of cylinders: 6

Emission level: Tier 4f/EU IV

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

John Deere Construction 524K-II FAQ

When was the John Deere Construction 524K-II manufactured?

The John Deere Construction 524K-II was manufactured from 2017 to 2019.

How much does the John Deere Construction 524K-II wheel loader weigh?

The John Deere Construction 524K-II wheel loader weighs 12.67 tons.

What are the transport dimensions of the John Deere Construction 524K-II wheel loader?

The John Deere Construction 524K-II has a transport length of 7.34 meters, a transport width of 2.55 meters, and a transport height of 3.25 meters.

What is the travel speed of the John Deere Construction 524K-II wheel loader?

The John Deere Construction 524K-II has a travel speed of 38.5 km/h.

What is the standard tyre size of the John Deere Construction 524K-II wheel loader?

The John Deere Construction 524K-II wheel loader is equipped with standard tyres sized 20.5 R25.

What are the maneuverability specifications of the John Deere Construction 524K-II wheel loader?

The John Deere Construction 524K-II has an outside turning radius of 5 meters and features all-wheel steering.

What is the maximum discharge height of the John Deere Construction 524K-II?

The John Deere Construction 524K-II has a maximum discharge height of 2.77 meters.

What are the specifications of the bucket on the John Deere Construction 524K-II wheel loader?

The John Deere Construction 524K-II wheel loader has a bucket with a maximum capacity of 2.4 cubic meters, a minimum capacity of 1.7 cubic meters, and a width of 2.54 meters.
