304 K John Deere Construction 304 K Specifications & Technical Data (2013—2021)

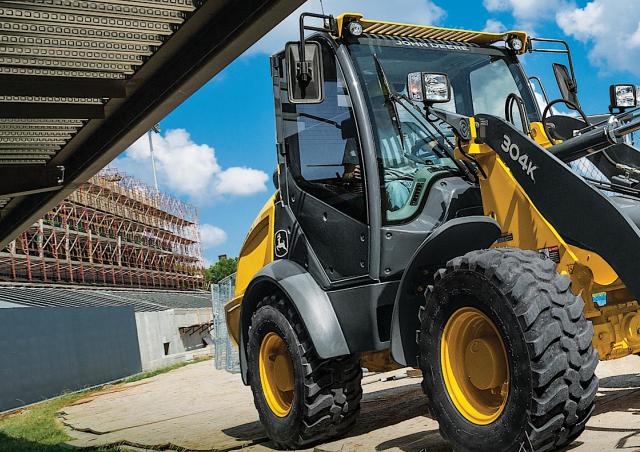

The John Deere Construction 304 K is a wheel loader manufactured from 2013 to 2021. It has a weight of 5.796 tons and a transport …

The John Deere Construction 304 K is a wheel loader manufactured from 2013 to 2021. It has a weight of 5.796 tons and a transport length of 5.52 meters. The bucket width is 1.9 meters, and it has a travel speed of 20 km/h. The transport height is 2.47 meters, and the turning radius outside is 3.9 meters. The maximum bucket capacity is 1.22 cubic meters, while the minimum bucket capacity is 0.8 cubic meters.

304 K

Years of manufacture: 2013—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 304 K John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.796 t

Standard tyres: 17.5 65-20. L0 PR L2

Bucket width: 1.9 m

Bucket capacity min.: 0.8 m³

Bucket capacity max.: 1.22 m³

Transport length: 5.52 m

Transport height: 2.47 m

Travel speed: 20 km/h

Turning radius outside: 3.9 m

Model series: K

Engine manuf.: Yanmar

Engine type: 4TNV98

Engine power: 48 kW

Displacement: 3.3 l

Max. torque: 239 Nm

No. of cylinders: 4

Cylinder bore x stroke: 98 x 110 mm

Emission level: Stage IIIA

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

John Deere Construction 304 K FAQ

When was the John Deere Construction 304 K manufactured?

The John Deere Construction 304 K was manufactured from 2013 to 2021.

How much does the John Deere Construction 304 K wheel loader weigh?

The John Deere Construction 304 K wheel loader weighs 5.8 tons.

What are the transport dimensions of the John Deere Construction 304 K?

The John Deere Construction 304 K has a transport length of 5.52 meters and a transport height of 2.47 meters.

What is the travel speed of the John Deere Construction 304 K wheel loader?

The John Deere Construction 304 K has a travel speed of 20 km/h.

What are the undercarriage specifications of the John Deere Construction 304 K wheel loader?

The John Deere Construction 304 K is equipped with standard tyres sized 17.5 65-20. L0 PR L2.

What is the outside turning radius of the John Deere Construction 304 K wheel loader?

The John Deere Construction 304 K has an outside turning radius of 3.9 meters.

What are the specifications of the bucket on the John Deere Construction 304 K wheel loader?

The bucket on the John Deere Construction 304 K has a maximum capacity of 1.22 cubic meters, a minimum capacity of 0.8 cubic meters, and a width of 1.9 meters.
