TM 320 JCB TM 320 Specifications & Technical Data (2016—2020)

The JCB TM 320 is a wheel loader manufactured by JCB from 2016 to 2020. It has a weight of 8.16 tons and a transport length of 6.3…

The JCB TM 320 is a wheel loader manufactured by JCB from 2016 to 2020. It has a weight of 8.16 tons and a transport length of 6.32 meters. The bucket capacity is 1 cubic meter with a width of 1.95 meters. The maximum discharge height is 4.511 meters and it has a travel speed of 20 km/h. The transport width is 2.35 meters and the transport height is 2.703 meters. The turning radius outside is 4.633 meters. It is equipped with a diesel particulate filter and has a telescopic feature.

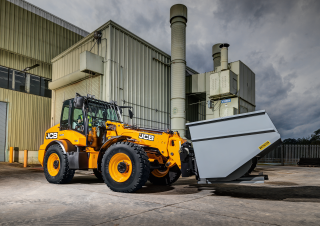

Wheel Loaders JCB TM 320

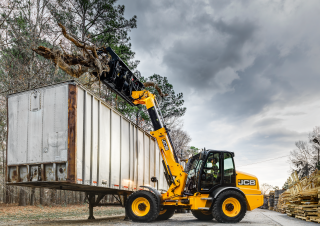

Wheel Loaders JCB TM 320

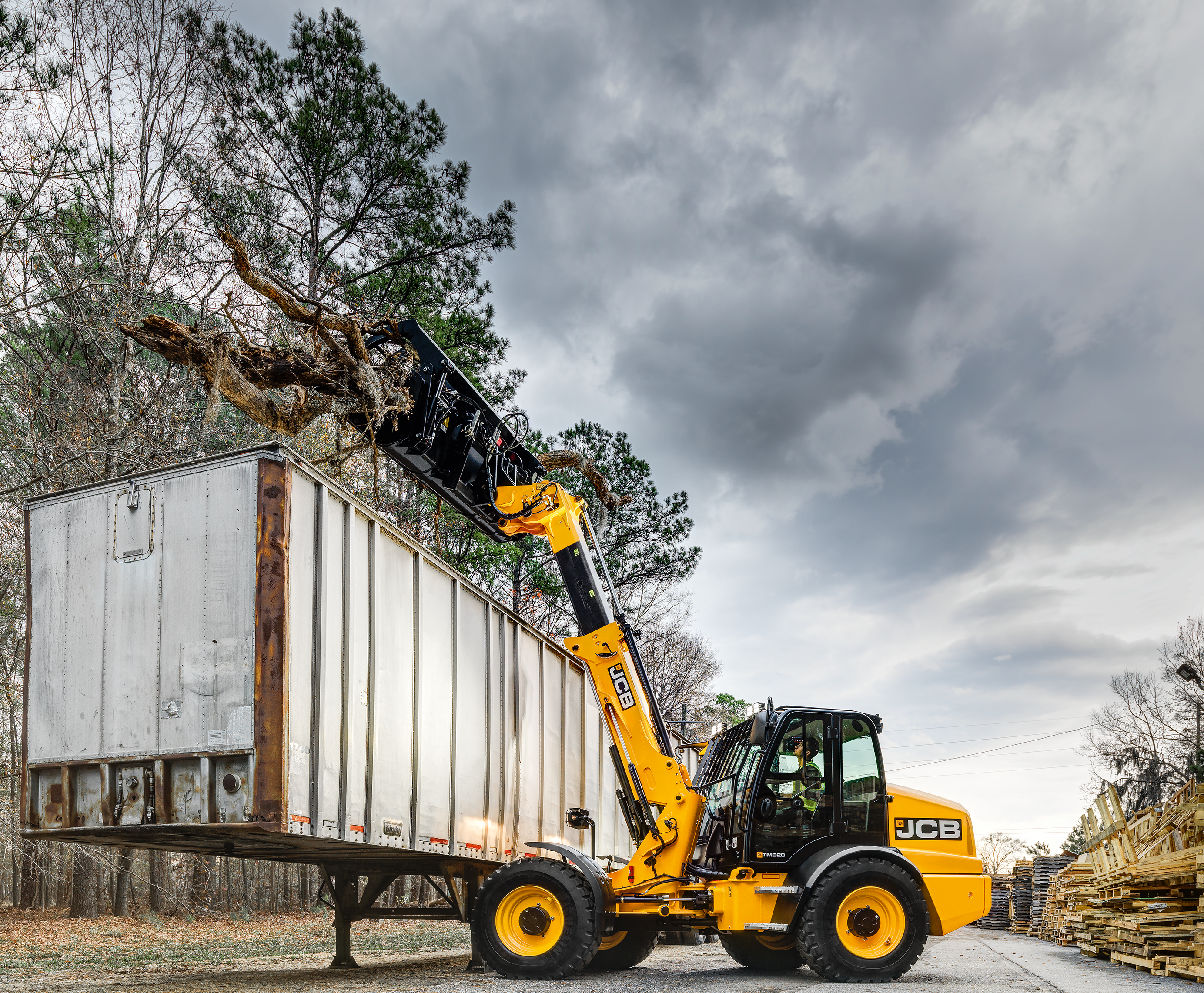

Wheel Loaders JCB TM 320

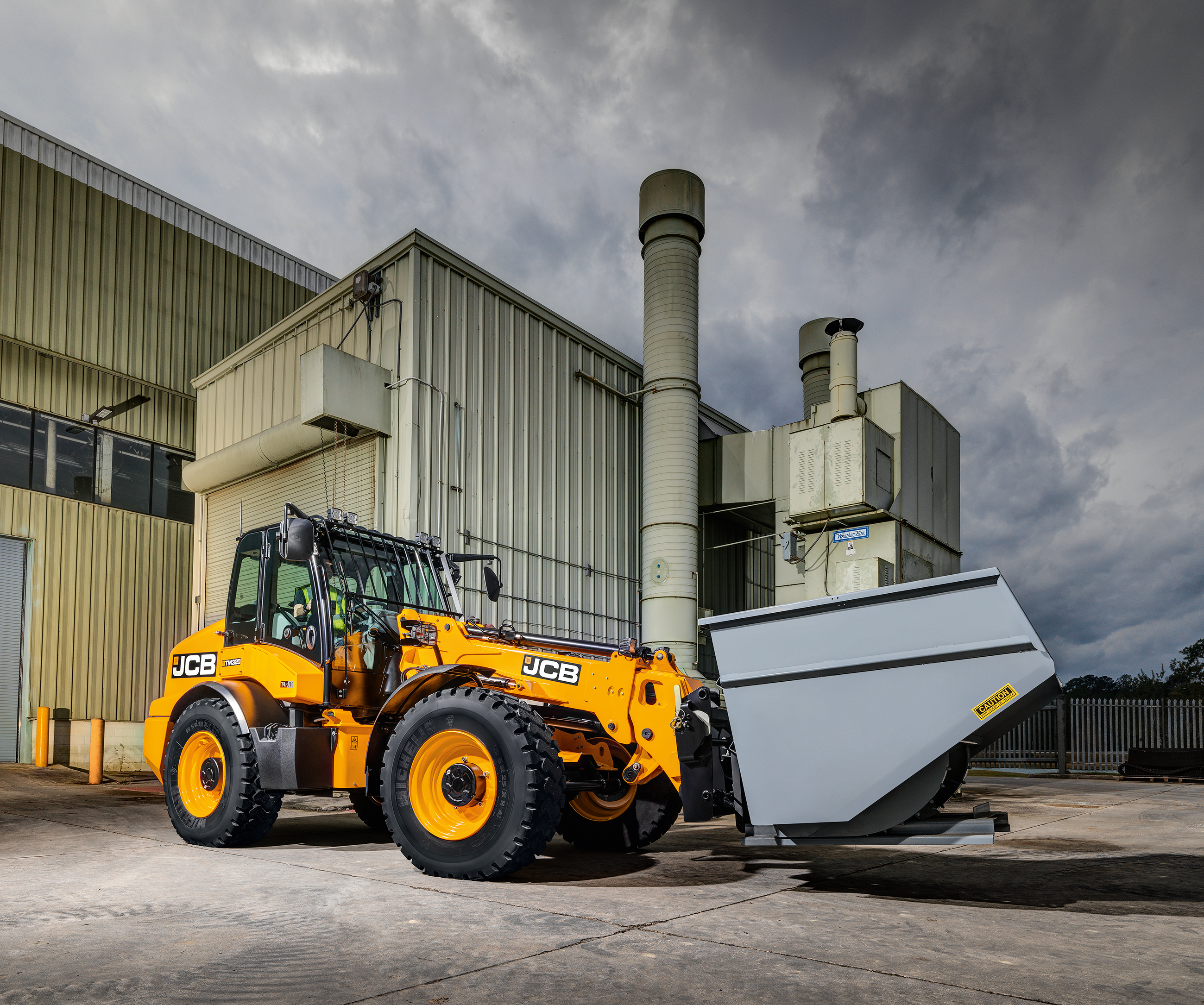

Wheel Loaders JCB TM 320

Visit JCB live at

Technical specs - TM 320 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.16 t
Standard tyres
15.5 R25 XHA
Bucket width
1.95 m
Bucket capacity
1 m³
Steering mode
KL
Transport length
6.32 m
Transport width
2.35 m
Transport height
2.703 m
Travel speed
20 km/h
Max. discharge height
4.511 m
Turning radius outside
4.633 m
Model series
TM
Engine manuf.
JCB
Engine type
EcoMax
Engine power
93 kW
Displacement
5.193 l
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., lifting force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
Yes
Swing loader
No
telescopic
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB TM 320 FAQ

When was the JCB TM 320 manufactured?

The JCB TM 320 was manufactured from 2016 to 2020.

How much does the JCB TM 320 wheel loader weigh?

The JCB TM 320 wheel loader weighs 8.16 tons.

What are the transport dimensions of the JCB TM 320 wheel loader?

The JCB TM 320 has a transport length of 6.32 meters, a transport width of 2.35 meters, and a transport height of 2.7 meters.

What is the travel speed of the JCB TM 320 wheel loader?

The JCB TM 320 has a travel speed of 20 km/h.

What are the standard tyre specifications of the JCB TM 320 wheel loader?

The JCB TM 320 wheel loader has standard tyres sized 15.5 R25 XHA.

What are the maneuverability specifications of the JCB TM 320 wheel loader?

The JCB TM 320 has an outside turning radius of 4.633 meters and features articulated-frame steering.

What is the material handling capacity of the JCB TM 320 in terms of discharge height?

The JCB TM 320 has a maximum discharge height of 4.51 meters for material handling.

What are the specifications of the bucket on the JCB TM 320 wheel loader?

The bucket of the JCB TM 320 has a capacity of 1 cubic meter and a width of 1.95 meters.

How much is a JCB TM 320 Wheel loader (2016u20132020) worth?

The residual value of the JCB TM 320 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
