437 HT JCB 437 HT Specifications & Technical Data (2014—2017)

The JCB 437 HT is a wheel loader manufactured by JCB from 2014 to 2017. It has a weight of 14.79 tons and a transport length of 6.…

The JCB 437 HT is a wheel loader manufactured by JCB from 2014 to 2017. It has a weight of 14.79 tons and a transport length of 6.9 meters. The bucket capacity is 1.8 cubic meters, with a bucket width of 2.7 meters. The maximum discharge height is 2.88 meters. It has a travel speed of 40 km/h and a transport width of 2.59 meters. The transport height is 3.34 meters. The lifting force is 134 kN, and the turning radius outside is 6.02 meters. The bucket capacity ranges from a minimum of 1.8 cubic meters to a maximum of 2.7 cubic meters. It is equipped with air conditioning.

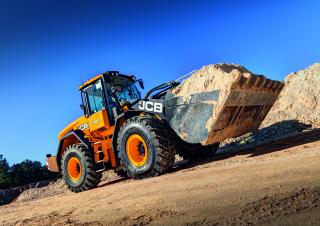

Wheel Loaders JCB 437 HT
Wheel Loaders JCB 437 HT
Wheel Loaders JCB 437 HT
Wheel Loaders JCB 437 HT

Visit JCB live at

Technical specs - 437 HT JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.79 t
Standard tyres
20.5 R25 XHA
Bucket width
2.7 m
Bucket capacity
1.8 m³
Bucket capacity min.
1.8 m³
Bucket capacity max.
2.7 m³
Steering mode
KL
Transport length
6.9 m
Transport width
2.59 m
Transport height
3.34 m
Travel speed
40 km/h
Max. discharge height
2.88 m
Turning radius outside
6.02 m
Lifting force
134 kN
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
129 kW
Displacement
25355 l
Revolutions at max torque
2200 rpm
Max. torque
841/1500 Nm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
IV

More technical details, like: model series, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 437 HT FAQ

When was the JCB 437 HT wheel loader manufactured?

The JCB 437 HT wheel loader was manufactured from 2014 to 2017.

How much does the JCB 437 HT wheel loader weigh?

The JCB 437 HT wheel loader weighs 14.79 tons.

What are the transport dimensions of the JCB 437 HT wheel loader?

The JCB 437 HT has a transport length of 6.9 meters, a transport width of 2.59 meters, and a transport height of 3.34 meters.

What is the travel speed of the JCB 437 HT wheel loader?

The JCB 437 HT has a travel speed of 40 km/h.

What are the undercarriage specifications of the JCB 437 HT wheel loader?

The JCB 437 HT wheel loader is equipped with standard tyres sized 20.5 R25 XHA.

What are the maneuverability specifications of the JCB 437 HT wheel loader?

The JCB 437 HT wheel loader has an articulated-frame steering system and an outside turning radius of 6.02 meters.

What is the lifting force of the JCB 437 HT?

The JCB 437 HT has a lifting force of 134 kN.

What is the maximum discharge height of the JCB 437 HT?

The JCB 437 HT has a maximum discharge height of 2.88 meters.

What are the specifications of the bucket on the JCB 437 HT wheel loader?

The JCB 437 HT wheel loader has a bucket with a capacity ranging from 1.8 to 2.7 cubic meters and a bucket width of 2.7 meters.
