437-4 JCB 437-4 Specifications & Technical Data (2022—2026)

The JCB 437-4 is a wheel loader manufactured since 2022. It has a weight of 12.04 tons and a transport length of 7.51 meters. The …

The JCB 437-4 is a wheel loader manufactured since 2022. It has a weight of 12.04 tons and a transport length of 7.51 meters. The bucket capacity ranges from 1.8 to 3.4 cubic meters, with a bucket width of 2.58 meters. The maximum discharge height is 2.7 meters. It has a travel speed of 33 km/h and a transport width of 2.4 meters. The transport height is 3.26 meters, and the turning radius outside is 5.92 meters.

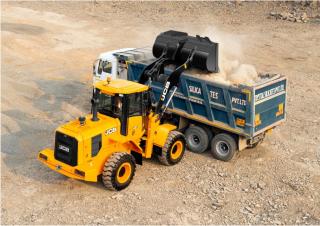

Wheel Loaders JCB 437-4

Visit JCB live at

Technical specs - 437-4 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.04 t
Standard tyres
17.5 X 25 (20PR)
Bucket width
2.58 m
Bucket capacity
1.8 m³
Bucket capacity min.
1.8 m³
Bucket capacity max.
3.4 m³
Transport length
7.51 m
Transport width
2.4 m
Transport height
3.26 m
Travel speed
33 km/h
Max. discharge height
2.7 m
Turning radius outside
5.92 m
Engine manuf.
JCB
Engine type
ecoMax 448
Engine power
108 kW
Displacement
4.88 l
Revolutions at max torque
1500 rpm
Max. torque
560 Nm
No. of cylinders
4
Emission level
CEV Stage IV

More technical details, like: steering mode, lifting force, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 437-4 FAQ

When was the JCB 437-4 manufactured?

The JCB 437-4 was first produced in 2022.

How much does the JCB 437-4 wheel loader weigh?

The JCB 437-4 wheel loader weighs 12.04 tons.

What are the transport dimensions of the JCB 437-4 wheel loader?

The JCB 437-4 wheel loader has a transport length of 7.51 meters, a transport width of 2.4 meters, and a transport height of 3.26 meters.

What is the travel speed of the JCB 437-4 wheel loader?

The JCB 437-4 wheel loader has a travel speed of 33 km/h.

What are the standard tyres of the JCB 437-4 wheel loader?

The JCB 437-4 wheel loader is equipped with standard tyres sized 17.5 X 25 (20PR).

What is the turning radius of the JCB 437-4 wheel loader?

The JCB 437-4 wheel loader has an outside turning radius of 5.92 meters.

What is the material handling capacity of the JCB 437-4 in terms of discharge height?

The JCB 437-4 has a maximum discharge height of 2.7 meters.

What are the specifications of the bucket on the JCB 437-4 wheel loader?

The JCB 437-4 wheel loader has a bucket with a capacity ranging from 1.8 to 3.4 cubic meters and a width of 2.58 meters.

How much is a JCB 437-4 Wheel loader (2022u20132025) worth?

The residual value of the JCB 437-4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
