JCB 435S Specifications & Technical Data (2020-2025)

Name: JCB 435S Wheel Loaders
Brand: JCB

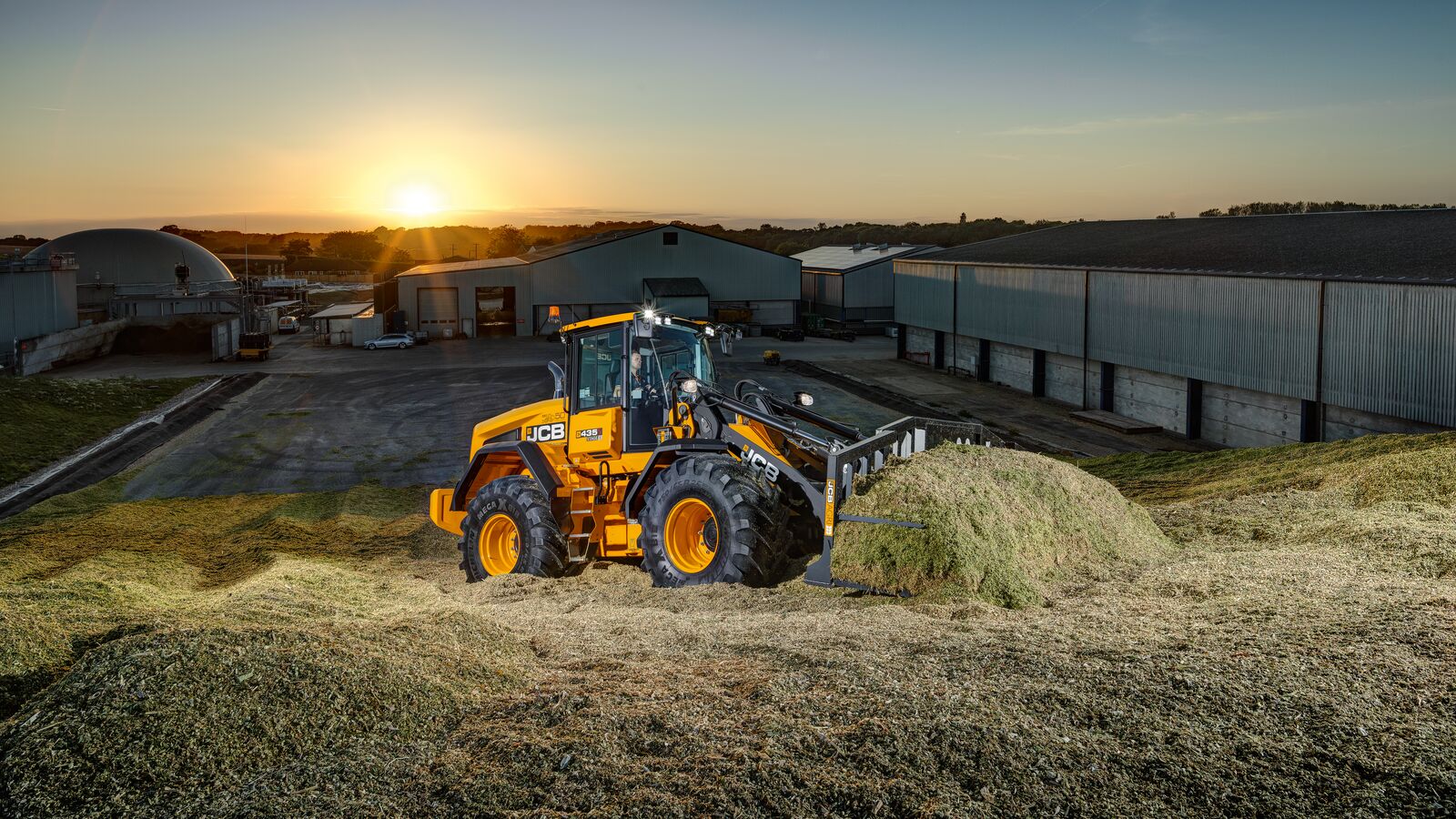

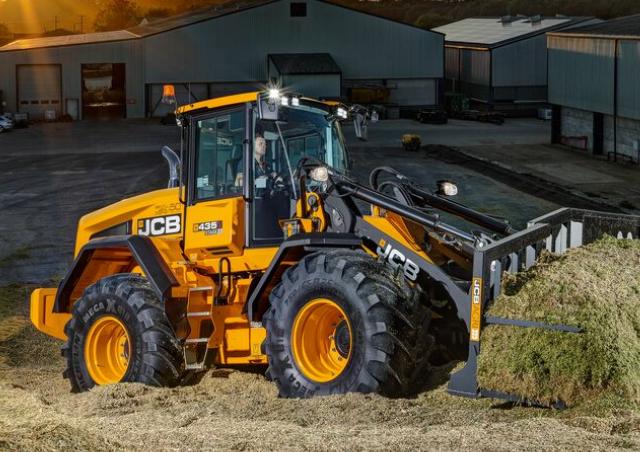

The JCB 435 S is a wheel loader manufactured since 2020. It has a weight of 15.16 tons and a transport length of 7.52 meters. The …

The JCB 435 S is a wheel loader manufactured since 2020. It has a weight of 15.16 tons and a transport length of 7.52 meters. The bucket capacity is 1.9 cubic meters, and the maximum discharge height is 3.37 meters. It has a travel speed of 48 km/h and a transport width of 2.96 meters. The transport height is 3.42 meters, and the lifting force is 138 kN. The turning radius outside is 6.03 meters. Special equipment includes air conditioning, a diesel particulate filter, and a quick hitch hydraulic mechanism.

435S

Years of manufacture: 2020—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - 435S JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 15.16 t

Standard tyres: 750/65 R26

Bucket capacity: 1.9 m³

Bucket capacity min.: 1.9 m³

Steering mode: KL

Transport length: 7.52 m

Transport width: 2.96 m

Transport height: 3.42 m

Travel speed: 48 km/h

Max. discharge height: 3.37 m

Turning radius outside: 6.03 m

Lifting force: 138 kN

Model series: 400

Engine manuf.: Cummins

Engine type: QSB6.7

Engine power: 188 kW

Displacement: 6.7 l

Revolutions at max torque: 1300 rpm

Max. torque: 1186 Nm

No. of cylinders: 6

Emission level: V

More technical details, like: bucket width, bucket capacity max., dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No
