JCB 427 HT Specifications & Technical Data (2019-2025)

Name: JCB 427 HT Wheel Loaders
Brand: JCB

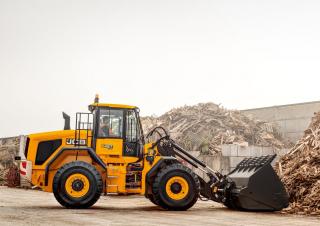

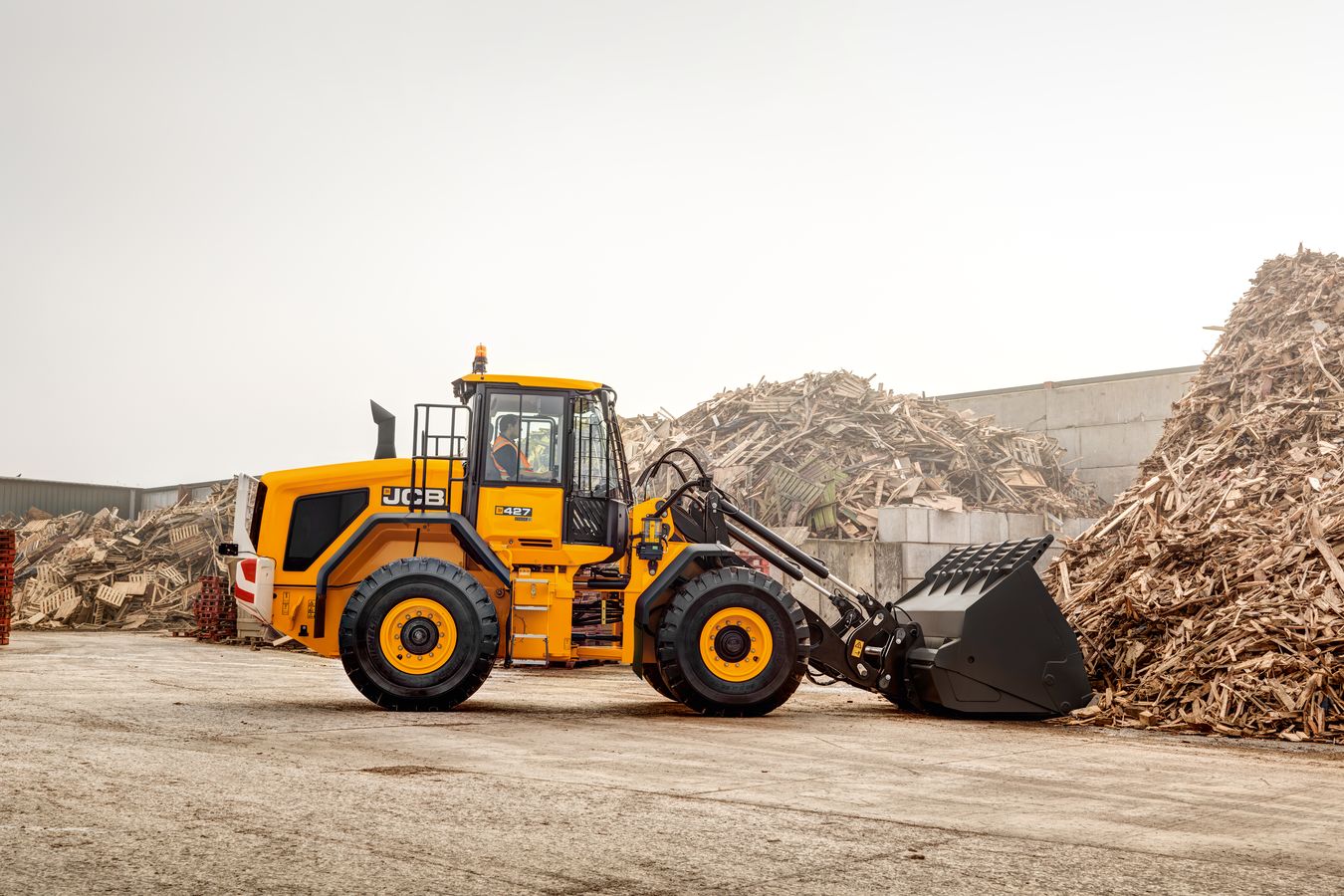

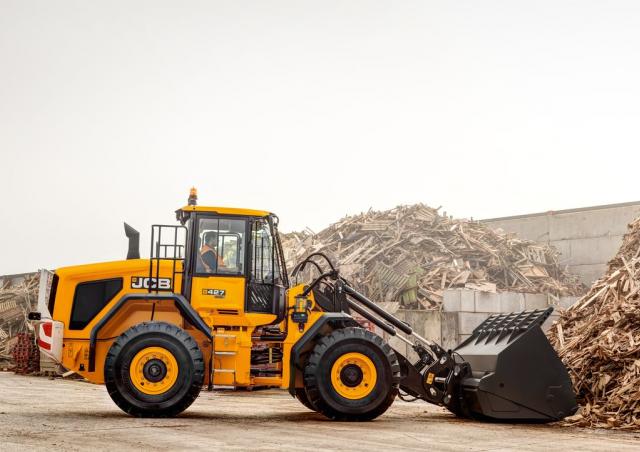

The JCB 427 HT is a wheel loader manufactured by JCB since 2019. It has a weight of 14.18 tons and a transport length of 7.53 mete…

The JCB 427 HT is a wheel loader manufactured by JCB since 2019. It has a weight of 14.18 tons and a transport length of 7.53 meters. The bucket capacity ranges from 1.9 to 2.7 cubic meters, with a maximum discharge height of 3.37 meters. The travel speed of this machine is 40 km/h, and it has a transport width of 2.58 meters and a transport height of 3.36 meters. The lifting force of the JCB 427 HT is 138 kN, and it has a turning radius outside of 6.035 meters. Special equipment includes air conditioning, a diesel particulate filter, and a quick hitch hydraulic system.

427 HT

Years of manufacture: 2019—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - 427 HT JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14.18 t

Standard tyres: 20.5R25 XHA2

Bucket capacity: 1.9 m³

Bucket capacity min.: 1.9 m³

Bucket capacity max.: 2.7 m³

Steering mode: KL

Transport length: 7.53 m

Transport width: 2.58 m

Transport height: 3.36 m

Travel speed: 40 km/h

Max. discharge height: 3.37 m

Turning radius outside: 6.035 m

Lifting force: 138 kN

Model series: 400

Engine manuf.: Cummins

Engine type: QSB6.7

Engine power: 123 kW

Displacement: 6.7 l

Revolutions at max torque: 1300 rpm

Max. torque: 746 Nm

No. of cylinders: 6

Emission level: V

More technical details, like: bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No
