427 HT JCB 427 HT Specifications & Technical Data (2019—2026)

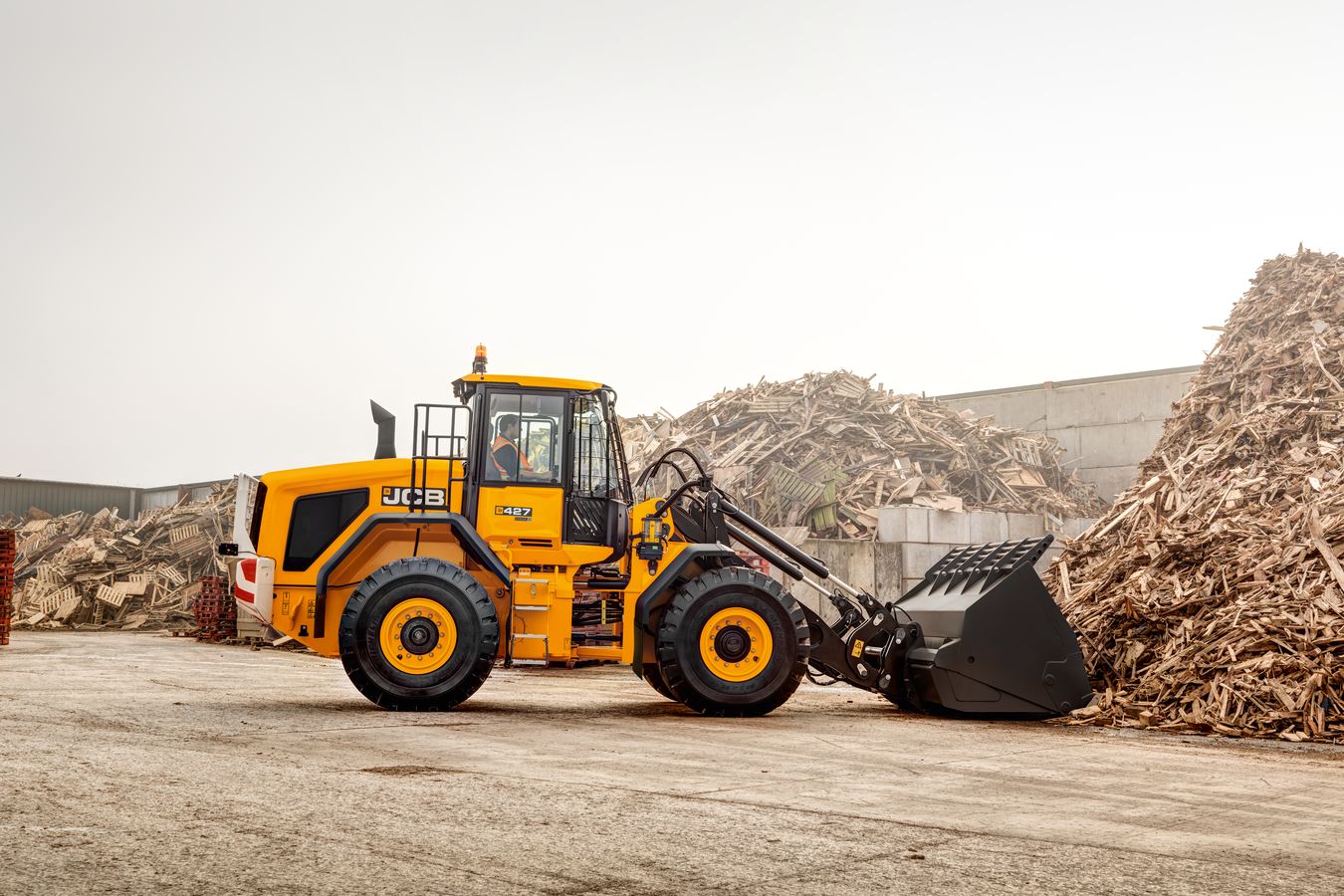

The JCB 427 HT is a wheel loader manufactured by JCB since 2019. It has a weight of 13.99 tons and a transport length of 7.07 mete…

The JCB 427 HT is a wheel loader manufactured by JCB since 2019. It has a weight of 13.99 tons and a transport length of 7.07 meters. The bucket capacity ranges from 1.9 to 2.7 cubic meters, with a maximum discharge height of 2.94 meters. It has a travel speed of 40 km/h and a transport width of 2.58 meters. The transport height is 3.36 meters. The lifting force of this machine is 138 kN, and it has a turning radius outside of 5.902 meters. Special equipment includes air conditioning, a diesel particulate filter, and a quick hitch hydraulic system.

427 HT

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 427 HT JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 13.99 t

Standard tyres: 20.5R25 XHA2

Bucket capacity: 1.9 m³

Bucket capacity min.: 1.9 m³

Bucket capacity max.: 2.7 m³

Steering mode: KL

Transport length: 7.07 m

Transport width: 2.58 m

Transport height: 3.36 m

Travel speed: 40 km/h

Max. discharge height: 2.94 m

Turning radius outside: 5.902 m

Lifting force: 138 kN

Model series: 400

Engine manuf.: Cummins

Engine type: QSB6.7

Engine power: 123 kW

Displacement: 6.7 l

Revolutions at max torque: 1300 rpm

Max. torque: 746 Nm

No. of cylinders: 6

Emission level: V

More technical details, like: bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

JCB 427 HT FAQ

When was the JCB 427 HT manufactured?

The JCB 427 HT was first produced in 2019.

How much does the JCB 427 HT wheel loader weigh?

The JCB 427 HT wheel loader weighs 13.99 tons.

What are the transport dimensions of the JCB 427 HT wheel loader?

The JCB 427 HT wheel loader has a transport length of 7.07 meters, a transport width of 2.58 meters, and a transport height of 3.36 meters.

What is the travel speed of the JCB 427 HT wheel loader?

The JCB 427 HT wheel loader has a travel speed of 40 km/h.

What are the undercarriage tyre specifications for the JCB 427 HT wheel loader?

The JCB 427 HT wheel loader is equipped with standard tyres sized 20.5R25 XHA2.

What are the maneuverability specifications of the JCB 427 HT wheel loader?

The JCB 427 HT wheel loader has an articulated-frame steering system and an outside turning radius of 5.902 meters.

What is the lifting force of the JCB 427 HT wheel loader?

The JCB 427 HT wheel loader has a lifting force of 138 kN. No power rating data is available for this model in the provided source.

What is the maximum discharge height of the JCB 427 HT wheel loader?

The JCB 427 HT wheel loader has a maximum discharge height of 2.94 meters.

What are the bucket capacity specifications of the JCB 427 HT wheel loader?

The JCB 427 HT wheel loader has a bucket capacity ranging from a minimum of 1.9 cubic meters to a maximum of 2.7 cubic meters, with a standard bucket capacity of 1.9 cubic meters.
