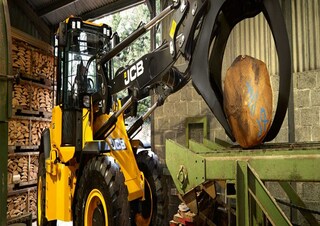

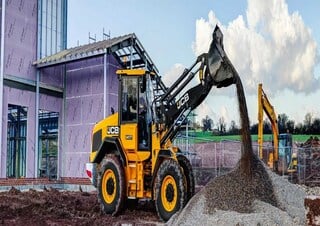

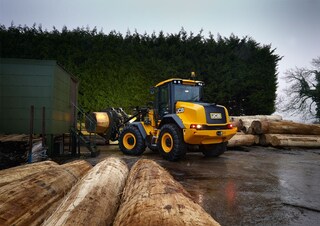

    Lectura specs Construction machinery Wheel Loaders Wheel Loaders JCB JCB 417 HT specifications

    Technical specs - 417 HT JCB

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Weight 9.72 t
    Standard tyres 17.5 R25 XHA
    Bucket width 2.4 m
    Bucket capacity 1.6 m³
    Bucket capacity min. 1.6 m³
    Steering mode KL
    Transport length 6.29 m
    Transport width 2.33 m
    Transport height 3.08 m
    Travel speed 40 km/h
    Max. discharge height 2.67 m
    Turning radius outside 5.46 m
    Lifting force 65 kN
    Engine manuf. JCB
    Engine type EcoMax
    Engine power 93 kW
    Engine power 125 HP
    Displacement 5.193 l
    Emission level IV
    Bucket capacity max. ###
    Dimension lxwxh ###
    Revolutions at max torque ###
    Max. torque ###
    No. of cylinders ###
    Cylinder bore x stroke ###
    Weight ###

    Basic model with ROPS cabin, std. shovel and teeth

    417 HT JCB - Special equipment

    • Diesel particulate filter
    • Pivoting loader
    • telescopic
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.
