411 HT JCB 411 HT Specifications & Technical Data (2007—2012)

Model rating
5,00 / 10

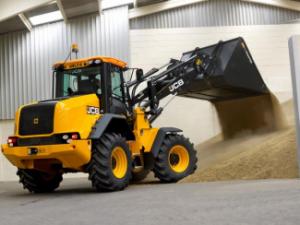

The JCB 411 HT is a wheel loader manufactured by JCB from 2007 to 2012. It has a weight of 8.7 tons and a transport length of 5.95…

The JCB 411 HT is a wheel loader manufactured by JCB from 2007 to 2012. It has a weight of 8.7 tons and a transport length of 5.952 meters. The bucket capacity is 1.4 cubic meters with a width of 2.25 meters. The maximum discharge height is 3.32 meters. It has a travel speed of 40 km/h and a transport width of 2.203 meters. The transport height is 3.078 meters and the turning radius outside is 5.414 meters. The machine is equipped with air conditioning.

Wheel Loaders JCB 411 HT

Visit JCB live at

Technical specs - 411 HT JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.7 t
Standard tyres
15.5 R25
Bucket width
2.25 m
Bucket capacity
1.4 m³
Bucket capacity min.
1.4 m³
Steering mode
KL
Transport length
5.952 m
Transport width
2.203 m
Transport height
3.078 m
Travel speed
40 km/h
Max. discharge height
3.32 m
Turning radius outside
5.414 m
Engine manuf.
JCB
Engine type
444
Engine power
74.2 kW

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 411 HT FAQ

When was the JCB 411 HT manufactured?

The JCB 411 HT was manufactured from 2007 to 2012.

How much does the JCB 411 HT wheel loader weigh?

The JCB 411 HT wheel loader weighs 8.7 tons.

What are the transport dimensions of the JCB 411 HT wheel loader?

The JCB 411 HT has a transport length of 5.95 meters, a transport width of 2.2 meters, and a transport height of 3.08 meters.

What is the travel speed of the JCB 411 HT wheel loader?

The JCB 411 HT has a travel speed of 40 km/h.

What are the standard tyre specifications of the JCB 411 HT wheel loader?

The JCB 411 HT wheel loader has standard tyres sized 15.5 R25.

What are the maneuverability specifications of the JCB 411 HT wheel loader?

The JCB 411 HT wheel loader features articulated-frame steering and has an outside turning radius of 5.414 meters.

What is the maximum discharge height of the JCB 411 HT?

The JCB 411 HT has a maximum discharge height of 3.32 meters.

What are the specifications of the bucket on the JCB 411 HT wheel loader?

The JCB 411 HT wheel loader has a bucket with a capacity of 1.4 cubic meters, a minimum bucket capacity of 1.4 cubic meters, and a bucket width of 2.25 meters.

How much is a JCB 411 HT Wheel loader (2007u20132012) worth?

The residual value of the JCB 411 HT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
