411 BZX JCB 411 BZX Specifications & Technical Data (1998—2004)

The JCB 411 BZX is a wheel loader manufactured by JCB from 1998 to 2004. It has a weight of 7.37 tons and a transport length of 5.…

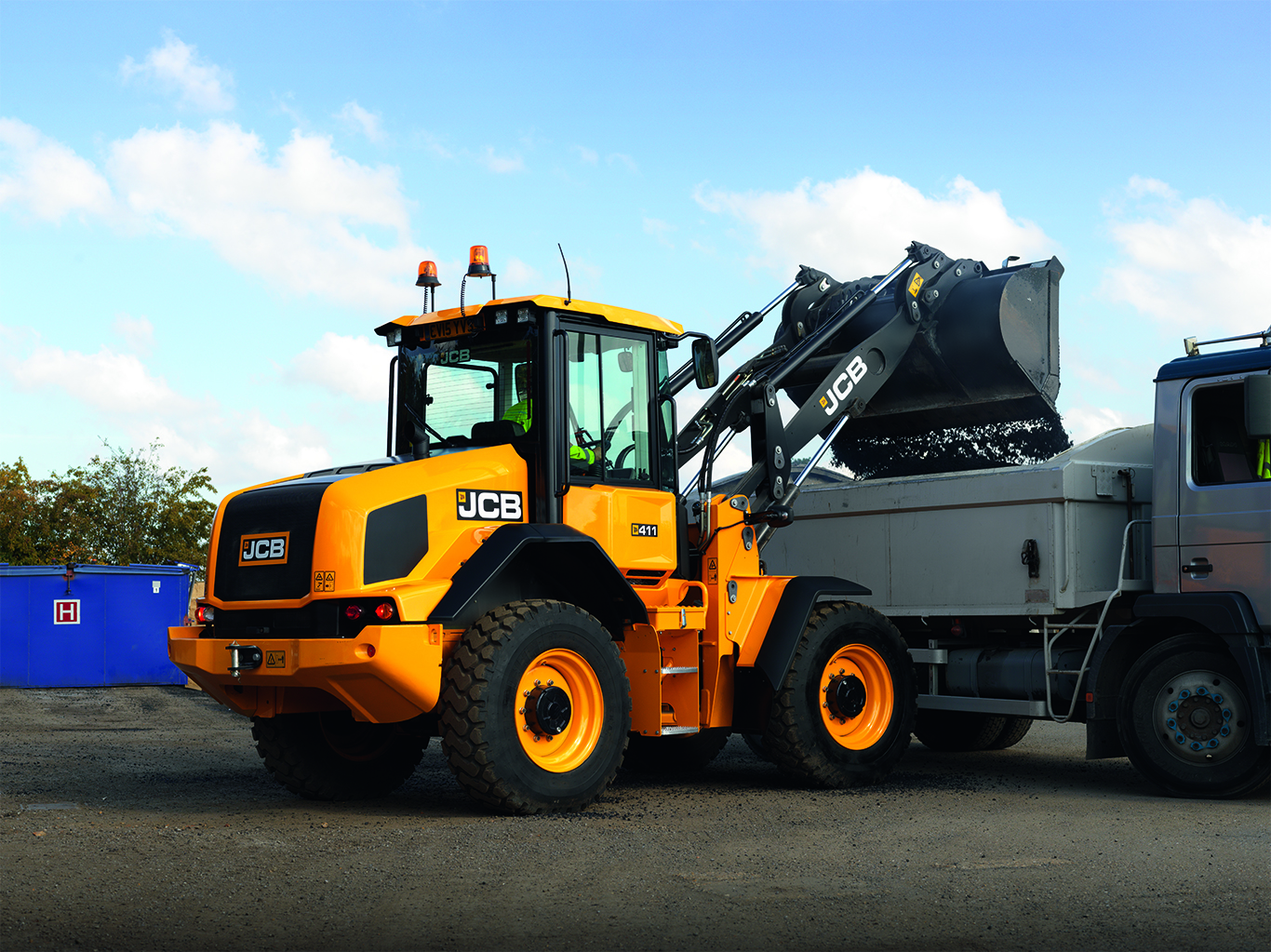

The JCB 411 BZX is a wheel loader manufactured by JCB from 1998 to 2004. It has a weight of 7.37 tons and a transport length of 5.53 meters. The bucket capacity is 1.2 cubic meters with a width of 2.25 meters. The maximum discharge height is 3.266 meters. It has a travel speed of 20 km/h and a transport width of 2.25 meters. The transport height is 2.85 meters. The lifting force is 77 kN and the turning radius outside is 4.2 meters. It is equipped with a quick hitch mechanism.

Wheel Loaders JCB 411 BZX
Wheel Loaders JCB 411 BZX
Wheel Loaders JCB 411 BZX
Wheel Loaders JCB 411 BZX

Visit JCB live at

Technical specs - 411 BZX JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.37 t
Standard tyres
305/80 R25
Bucket width
2.25 m
Bucket capacity
1.2 m³
Bucket capacity min.
1.2 m³
Steering mode
KL
Transport length
5.53 m
Transport width
2.25 m
Transport height
2.85 m
Travel speed
20 km/h
Max. discharge height
3.266 m
Turning radius outside
4.2 m
Lifting force
77 kN
Engine manuf.
Perkins
Engine type
1004.4LR2
Engine power
63 kW
Displacement
4.232 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

JCB 411 BZX FAQ

When was the JCB 411 BZX manufactured?

The JCB 411 BZX was manufactured from 1998 to 2004.

How much does the JCB 411 BZX weigh?

The JCB 411 BZX weighs 7.37 tons.

What are the transport dimensions of the JCB 411 BZX wheel loader?

The JCB 411 BZX has a transport length of 5.53 meters, a transport width of 2.25 meters, and a transport height of 2.85 meters.

What is the travel speed of the JCB 411 BZX wheel loader?

The JCB 411 BZX has a travel speed of 20 km/h.

What are the undercarriage specifications of the JCB 411 BZX wheel loader?

The JCB 411 BZX wheel loader is equipped with standard tyres sized 305/80 R25.

What are the maneuverability specifications of the JCB 411 BZX wheel loader?

The JCB 411 BZX wheel loader has an outside turning radius of 4.2 meters and uses articulated-frame steering.

What is the lifting force of the JCB 411 BZX wheel loader?

The JCB 411 BZX wheel loader has a lifting force of 77 kN.

What is the material handling capacity of the JCB 411 BZX in terms of discharge height?

The JCB 411 BZX has a maximum discharge height of 3.27 meters.

What are the specifications of the bucket on the JCB 411 BZX wheel loader?

The JCB 411 BZX wheel loader has a bucket capacity of 1.2 cubic meters, a minimum bucket capacity of 1.2 cubic meters, and a bucket width of 2.25 meters.
