403 Plus JCB 403 Plus Specifications & Technical Data (2020—2026)

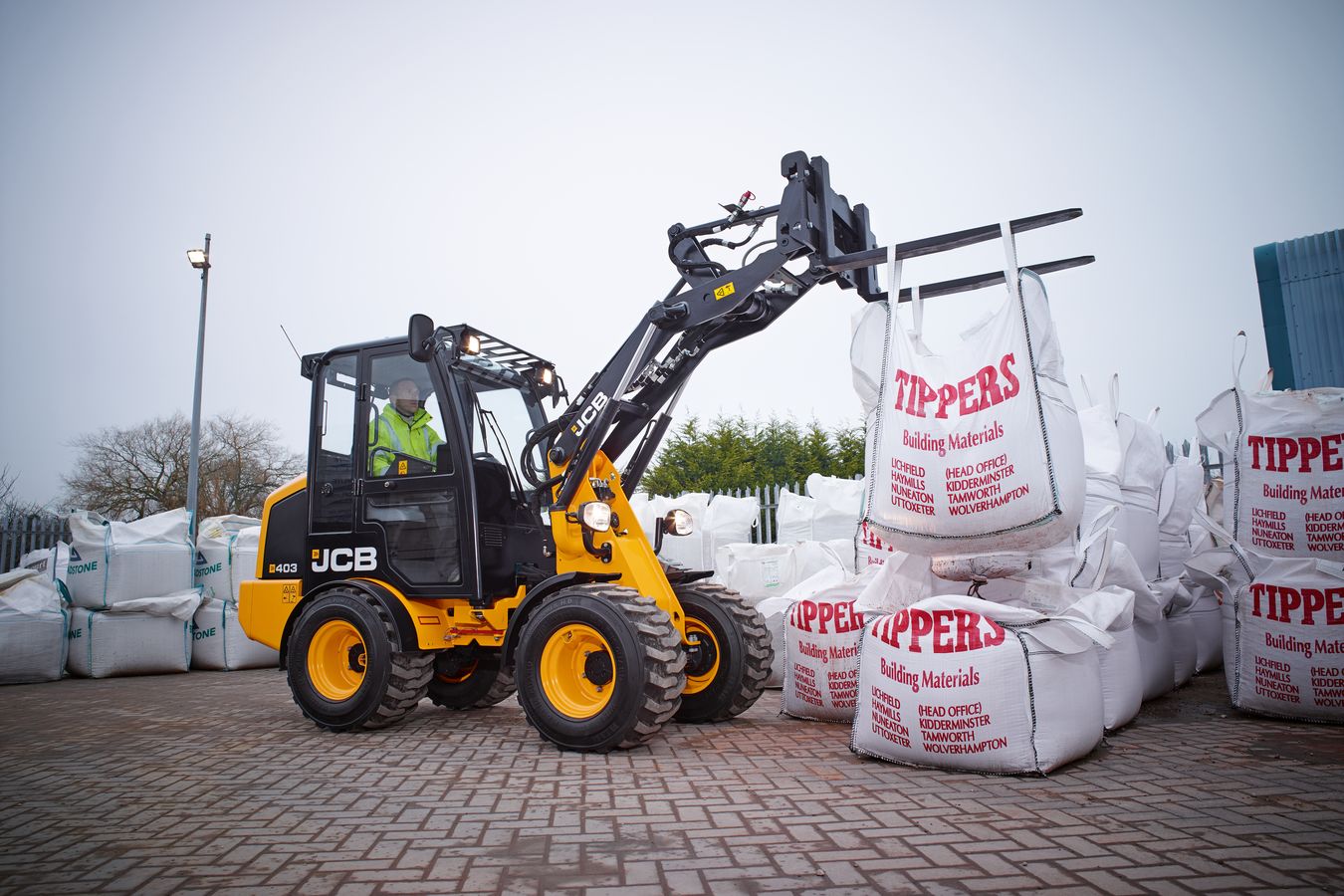

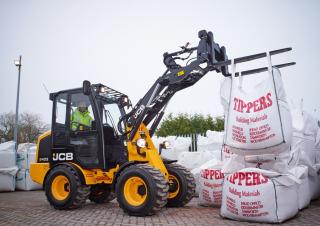

The JCB 403 Plus is a wheel loader manufactured since 2020. It has a weight of 2.7 tons and a transport length of 3.959 meters. Th…

The JCB 403 Plus is a wheel loader manufactured since 2020. It has a weight of 2.7 tons and a transport length of 3.959 meters. The bucket capacity is 0.3 cubic meters, with a bucket width of 1.17 meters. The maximum discharge height is 2.167 meters, and it has a travel speed of 30 km/h. The transport width is 1.123 meters, and the transport height is 2.2 meters. The turning radius outside is 2.69 meters. Special equipment includes a diesel particulate filter and a quick hitch hydraulic mechanism.

Wheel Loaders JCB 403 Plus

Visit JCB live at

Technical specs - 403 Plus JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.7 t
Standard tyres
31x15.50-16
Bucket width
1.17 m
Bucket capacity
0.3 m³
Bucket capacity min.
0.3 m³
Steering mode
KL
Transport length
3.96 m
Transport width
1.12 m
Transport height
2.2 m
Travel speed
30 km/h
Max. discharge height
2.17 m
Turning radius outside
2.69 m
Model series
400
Engine manuf.
Perkins
Engine type
403J-E17T
Engine power
36 kW
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity max., lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
Yes
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

JCB 403 Plus FAQ

When was the JCB 403 Plus manufactured?

The JCB 403 Plus was first produced in 2020.

How much does the JCB 403 Plus wheel loader weigh?

The JCB 403 Plus wheel loader weighs 2.7 tons.

What are the transport dimensions of the JCB 403 Plus wheel loader?

The JCB 403 Plus has a transport length of 3.96 meters, a transport width of 1.12 meters, and a transport height of 2.2 meters.

What is the travel speed of the JCB 403 Plus wheel loader?

The JCB 403 Plus has a travel speed of 30 km/h.

What is the standard tyre size of the JCB 403 Plus?

The JCB 403 Plus is equipped with standard tyres sized 31x15.50-16.

What are the maneuverability specifications of the JCB 403 Plus wheel loader?

The JCB 403 Plus wheel loader has an outside turning radius of 2.69 meters and uses articulated-frame steering.

What is the maximum discharge height of the JCB 403 Plus?

The JCB 403 Plus has a maximum discharge height of 2.17 meters.

What are the bucket specifications of the JCB 403 Plus wheel loader?

The JCB 403 Plus wheel loader has a bucket capacity of 0.3 cubic meters, a minimum bucket capacity of 0.3 cubic meters, and a bucket width of 1.17 meters.

How much is a JCB 403 Plus Wheel loader (2020u20132025) worth?

The residual value of the JCB 403 Plus depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
