H-100C International Harvester H-100C Specifications & Technical Data (1979—2026)

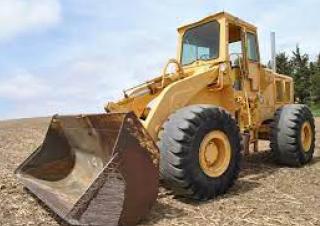

The International H-100C Wheel Loader, manufactured since 1979, is a construction machine with a bucket width of 3.315 meters. It …

The International H-100C Wheel Loader, manufactured since 1979, is a construction machine with a bucket width of 3.315 meters. It has a maximum discharge height of 4 meters and a transport width and height of 3 meters each. The wheel loader has a maximum bucket capacity of 4 cubic meters and a minimum bucket capacity of 2 cubic meters.

Wheel Loaders International Harvester H-100C

Technical specs - H-100C International Harvester

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Standard tyres
26.5 x 25
Bucket width
3.32 m
Bucket capacity min.
2 m³
Bucket capacity max.
4 m³
Transport width
3 m
Transport height
3 m
Travel speed
53.6 km/h
Max. discharge height
4 m
Turning radius outside
7.15 m
Engine manuf.
International
Engine type
DT-817C
Engine power
240 kW
Displacement
13.4 l
Revolutions at max torque
2100 rpm
Max. torque
1208 Nm
No. of cylinders
6
Cylinder bore x stroke
136 x 152 mm

More technical details, like: weight, bucket capacity, steering mode, transport length, lifting force, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

International Harvester H-100C FAQ

When was the International Harvester H-100C manufactured?

The International Harvester H-100C was first produced in 1979.

What are the transport dimensions of the International Harvester H-100C?

The International Harvester H-100C has a transport width of 3 meters and a transport height of 3 meters.

What is the travel speed of the International Harvester H-100C wheel loader?

The International Harvester H-100C has a travel speed of 53.6 km/h.

What are the undercarriage tyre specifications of the International Harvester H-100C wheel loader?

The International Harvester H-100C wheel loader is equipped with standard tyres sized 26.5 x 25.

What is the turning radius of the International Harvester H-100C wheel loader?

The International Harvester H-100C has an outside turning radius of 7.15 meters.

What is the material handling capacity of the International Harvester H-100C in terms of discharge height?

The International Harvester H-100C has a maximum discharge height of 4 meters.

What are the bucket specifications of the International Harvester H-100C wheel loader?

The International Harvester H-100C wheel loader has a bucket with a maximum capacity of 4 cubic meters, a minimum capacity of 2 cubic meters, and a width of 3.32 meters.
