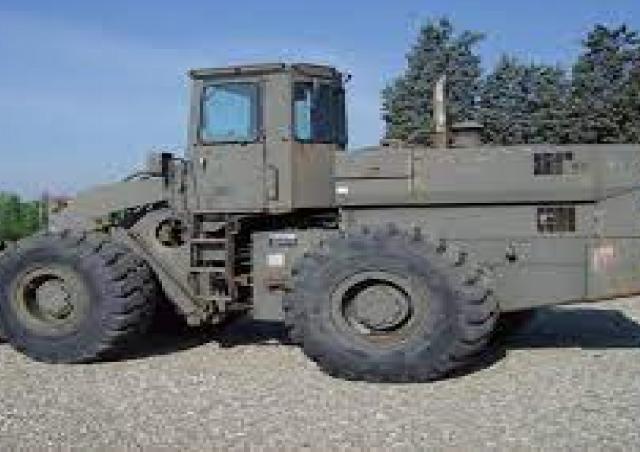

540 International Harvester 540 Specifications & Technical Data (1979—2026)
Technical specs - 540 International Harvester
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Standard tyres
- 23.5 x 25
- Bucket width
- 2.9 m
- Bucket capacity min.
- 2.37 m³
- Bucket capacity max.
- 3.63 m³
- Transport height
- 3.36 m
- Travel speed
- 34.2 km/h
- Max. discharge height
- 3.04 m
- Turning radius outside
- 7.82 m
- Engine manuf.
- International
- Engine type
- DT-466B
- Engine power
- 149 kW
- Displacement
- 7.63 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 691 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 109 x 136 mm
More technical details, like: weight, bucket capacity, steering mode, transport length, transport width, lifting force, model series, dimension lxwxh, emission level are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
No
- Swing loader
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Download datasheets (PDF)
International Harvester 540 FAQ
What is the transport height of the International Harvester 540 wheel loader?
What is the travel speed of the International Harvester 540 wheel loader?
What is the standard tyre size of the International Harvester 540?
What is the turning radius of the International Harvester 540 wheel loader?
What is the material handling capacity of the International Harvester 540 in terms of discharge height?
What are the bucket specifications of the International Harvester 540 wheel loader?
How much is a International Harvester 540 Wheel loader (1979u20132025) worth?
Machine inspection
Ask for inspection of your International Harvester 540 from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
