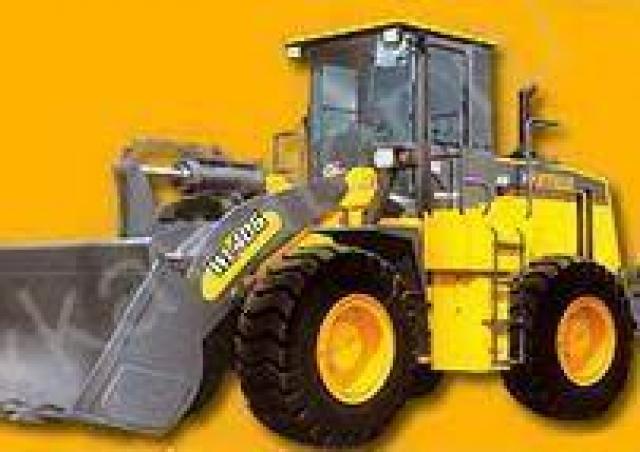

WL40G Intensus WL40G Specifications & Technical Data (2005—2026)

The Intensus WL40G is a wheel loader manufactured since 2005. It has a weight of 15 tons and a transport length of 7.739 meters. T…

The Intensus WL40G is a wheel loader manufactured since 2005. It has a weight of 15 tons and a transport length of 7.739 meters. The bucket capacity is 2 cubic meters, with a bucket width of 2 meters. The maximum discharge height is 2 meters, and it has a travel speed of 35 km/h. The transport width and height are both 2 meters and 3.425 meters, respectively.

WL40G

Years of manufacture: 2005—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - WL40G Intensus

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 15 t

Standard tyres: 20.5-25

Bucket width: 2 m

Bucket capacity: 2 m³

Transport length: 7.739 m

Transport width: 2 m

Transport height: 3.425 m

Travel speed: 35 km/h

Max. discharge height: 2 m

Turning radius outside: 5.95 m

Engine manuf.: N/A

Engine type: D6114ZG38A

Engine power: 125 kW

Dimension lxwxh: 7770x2755x3430 mm

Revolutions at max torque: 1300 rpm

Max. torque: 700 Nm

More technical details, like: bucket capacity min., bucket capacity max., steering mode, lifting force, model series, displacement, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

WL40G Intensus Specification for North America (EN)

Intensus WL40G FAQ

When was the Intensus WL40G manufactured?

The Intensus WL40G was first produced in 2005.

How much does the Intensus WL40G wheel loader weigh?

The Intensus WL40G wheel loader weighs 15 tons.

What are the transport dimensions of the Intensus WL40G wheel loader?

The Intensus WL40G has a transport length of 7.74 meters, a transport width of 2 meters, and a transport height of 3.43 meters.

What is the travel speed of the Intensus WL40G wheel loader?

The Intensus WL40G has a travel speed of 35 km/h.

What are the undercarriage specifications of the Intensus WL40G wheel loader?

The Intensus WL40G wheel loader is equipped with standard tyres sized 20.5-25.

What is the turning radius of the Intensus WL40G wheel loader?

The Intensus WL40G has an outside turning radius of 5.95 meters.

What is the maximum discharge height of the Intensus WL40G wheel loader?

The Intensus WL40G has a maximum discharge height of 2 meters.

What are the bucket specifications of the Intensus WL40G wheel loader?

The Intensus WL40G wheel loader has a bucket capacity of 2 cubic meters and a bucket width of 2 meters.
