HL635L Hyundai HL635L Specifications & Technical Data (2019—2026)

The Hyundai HL635L is a wheel loader manufactured since 2019. It has a weight of 10.4 tons and a transport length of 7.04 meters. …

The Hyundai HL635L is a wheel loader manufactured since 2019. It has a weight of 10.4 tons and a transport length of 7.04 meters. The bucket capacity is 1.7 cubic meters, with a bucket width of 2.46 meters. The maximum discharge height is 2.85 meters. It has a travel speed of 36 km/h and a transport width of 2.46 meters. The transport height is 3.2 meters, and the turning radius outside is 5.29 meters. The bucket capacity is a minimum of 1.7 cubic meters. It is equipped with air conditioning.

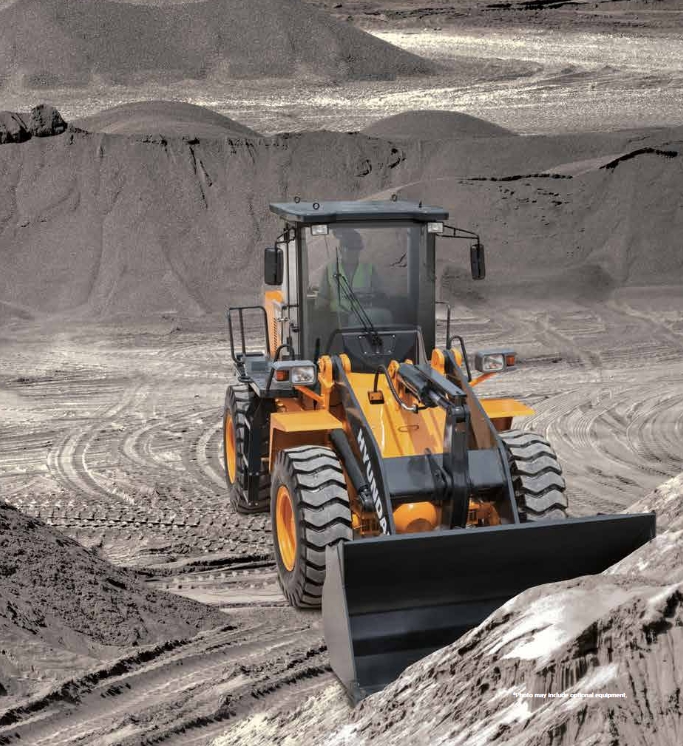

Wheel Loaders Hyundai HL635L
Wheel Loaders Hyundai HL635L
Wheel Loaders Hyundai HL635L
Wheel Loaders Hyundai HL635L

Visit Hyundai live at

Technical specs - HL635L Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.4 t
Standard tyres
17.5-25 L3
Bucket width
2.46 m
Bucket capacity
1.7 m³
Bucket capacity min.
1.7 m³
Steering mode
KL
Transport length
7.04 m
Transport width
2.46 m
Transport height
3.2 m
Travel speed
36 km/h
Max. discharge height
2.85 m
Turning radius outside
5.29 m
Engine manuf.
Weichai
Engine type
WP6G125E23
Engine power
92 kW
Displacement
6.75 l
Revolutions at max torque
1700 rpm
Max. torque
500 Nm
No. of cylinders
6
Emission level
Tier 2 / Stage II

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai HL635L FAQ

When was the Hyundai HL635L manufactured?

The Hyundai HL635L was first produced in 2019.

How much does the Hyundai HL635L wheel loader weigh?

The Hyundai HL635L wheel loader weighs 10.4 tons.

What are the transport dimensions of the Hyundai HL635L wheel loader?

The Hyundai HL635L has a transport length of 7.04 meters, a transport width of 2.46 meters, and a transport height of 3.2 meters.

What is the travel speed of the Hyundai HL635L wheel loader?

The Hyundai HL635L wheel loader has a travel speed of 36 km/h.

What are the undercarriage specifications of the Hyundai HL635L wheel loader?

The Hyundai HL635L wheel loader is equipped with standard tyres sized 17.5-25 L3.

What are the maneuverability specifications of the Hyundai HL635L wheel loader?

The Hyundai HL635L wheel loader has an articulated-frame steering mode and an outside turning radius of 5.29 meters.

What is the maximum discharge height of the Hyundai HL635L?

The Hyundai HL635L has a maximum discharge height of 2.85 meters.

What are the bucket specifications of the Hyundai HL635L wheel loader?

The Hyundai HL635L wheel loader has a bucket capacity of 1.7 cubic meters, a minimum bucket capacity of 1.7 cubic meters, and a bucket width of 2.46 meters.

How much is a Hyundai HL635L Wheel loader (2019u20132025) worth?

The residual value of the Hyundai HL635L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hyundai HL635L overview

Hyundai HL635L features overview

Proven reliability

The reliable components and solid frame structure not only improved the durability of the device, but also enhanced its work efficiency.


Easy Access to Engine Compartment

Engine hood with two side wing flap opened door provide access for maintenance to easily replace engine components and perform daily maintenance.


Engine / Powertrain / Drivetrain

Powerful, Fuel Efficient and Energy-Saving Engine

Weichai turbocharged engine are built for maximum power, reliability and optimum fuel efficiency. This engine meets the emission standards EPA Tier II, EU Stage II. Weichai WP (HL630L / 635L) engine has maximum power of 92kW and peak torque of 500 N·m at 1,400-1,500 rpm, it provides sufficient power. The Weichai engine provides more energy saving and stronger power.


Reliable and Proven Transmission with The Best Combination of Engine

Shantui Transmission & Torque convertor (HL630L / 635L) is best matching with Weichai WP6 engine. Shantui Transmission & Torque convertor is reliable and easily for operation to suit in all requirements of working situations. Due to the best matching, HL630L / 635L provides more powerful workability. Manual shifting mode, convenient for customers to choose gears according to actual conditions.


Hydraulic system

Oil Sight Gauge

The hydraulic oil check sight gauge is installed on the side of the hydraulic tank for the convenience of maintenance check from ground level.


Operator's cab

High efficiency machine

Innovative technologies make the HL600 Series wheel loader fast, smooth and easy to control. HL600 Series wheel loaders are designed for maximum performance to keep the operator working productively.


Spacious Cab with Excellent View

Spacious cab designed with ergonomics approach boasts low noise and excellent view, arc shaped front window, large rear window and side windows offer wide view in all directions.


Centralized Monitoring Panel

Centralized monitoring panel designed with simplicity of ergonomics that shows working conditions and warning lights at a glance.
