HL 757-9 Hyundai HL 757-9 Specifications & Technical Data (2010—2013)

Model rating
6,00 / 10

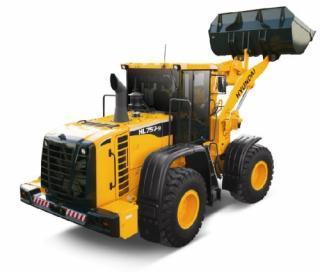

The Hyundai HL 757-9 is a wheel loader manufactured by Hyundai from 2010 to 2013. It has a weight of 14.5 tons and a transport len…

The Hyundai HL 757-9 is a wheel loader manufactured by Hyundai from 2010 to 2013. It has a weight of 14.5 tons and a transport length of 7.39 meters. The bucket capacity is 2.8 cubic meters with a width of 2.7 meters. The maximum discharge height is 2.8 meters. It has a travel speed of 38 km/h and a transport width of 2.74 meters. The transport height is 3.3 meters. The lifting force is 127.2 kN. The turning radius outside is 12.17 meters. It is equipped with air conditioning.

Wheel Loaders Hyundai HL 757-9

Visit Hyundai live at

Technical specs - HL 757-9 Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.5 t
Standard tyres
20.5-25
Bucket width
2.7 m
Bucket capacity
2.8 m³
Bucket capacity min.
2.8 m³
Steering mode
KL
Transport length
7.39 m
Transport width
2.74 m
Transport height
3.3 m
Travel speed
38 km/h
Max. discharge height
2.8 m
Turning radius outside
12.17 m
Lifting force
127.2 kN
Model series
9
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
129 kW
Displacement
6.7 l
Revolutions at max torque
2100 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai HL 757-9 FAQ

When was the Hyundai HL 757-9 manufactured?

The Hyundai HL 757-9 was manufactured from 2010 to 2013.

How much does the Hyundai HL 757-9 wheel loader weigh?

The Hyundai HL 757-9 wheel loader weighs 14.5 tons.

What are the transport dimensions of the Hyundai HL 757-9 wheel loader?

The Hyundai HL 757-9 has a transport length of 7.39 meters, a transport width of 2.74 meters, and a transport height of 3.3 meters.

What is the travel speed of the Hyundai HL 757-9 wheel loader?

The Hyundai HL 757-9 wheel loader has a travel speed of 38 km/h.

What is the standard tyre size of the Hyundai HL 757-9?

The Hyundai HL 757-9 is equipped with standard tyres sized 20.5-25.

What are the maneuverability specifications of the Hyundai HL 757-9 wheel loader?

The Hyundai HL 757-9 has an articulated-frame steering mode and an outside turning radius of 12.17 meters.

What is the lifting force of the Hyundai HL 757-9 wheel loader?

The Hyundai HL 757-9 wheel loader has a lifting force of 127.2 kN. The source data does not provide information about its power ratings.

What is the maximum discharge height of the Hyundai HL 757-9?

The Hyundai HL 757-9 has a maximum discharge height of 2.8 meters.

What are the specifications of the bucket on the Hyundai HL 757-9 wheel loader?

The Hyundai HL 757-9 wheel loader has a bucket capacity of 2.8 cubic meters, a minimum bucket capacity of 2.8 cubic meters, and a bucket width of 2.7 meters.

How much is a Hyundai HL 757-9 Wheel loader (2010u20132013) worth?

The residual value of the Hyundai HL 757-9 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Model rating
6,00 / 10
Quotation mark

Hyundai HL 757-9 user from United States

Loses its touch with age. Unlike a CAT, it requires stringent maintenance upkeep and knowhow
