ZW 220-5 Hitachi ZW 220-5 Specifications & Technical Data (2013—2015)

The Hitachi ZW 220-5 is a wheel loader manufactured by Hitachi from 2013 to 2015. It has a weight of 17.83 tons and a transport le…

The Hitachi ZW 220-5 is a wheel loader manufactured by Hitachi from 2013 to 2015. It has a weight of 17.83 tons and a transport length of 8.22 meters. The bucket width is 2.9 meters, and it has a maximum discharge height of 2.9 meters. The travel speed of this wheel loader is 36 km/h. It has a transport width of 2.83 meters and a transport height of 3.37 meters. The lifting force is 147 kN, and the turning radius outside is 6.94 meters. The bucket capacity ranges from a maximum of 3.5 cubic meters to a minimum of 2.4 cubic meters. It is equipped with air conditioning and a diesel particulate filter.

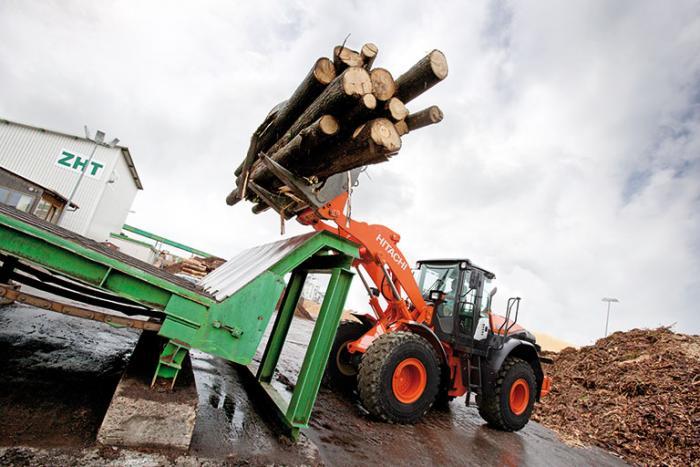

Wheel Loaders Hitachi ZW 220-5
Wheel Loaders Hitachi ZW 220-5
Wheel Loaders Hitachi ZW 220-5
Wheel Loaders Hitachi ZW 220-5
Wheel Loaders Hitachi ZW 220-5
Wheel Loaders Hitachi ZW 220-5
Wheel Loaders Hitachi ZW 220-5
Wheel Loaders Hitachi ZW 220-5
Wheel Loaders Hitachi ZW 220-5
Wheel Loaders Hitachi ZW 220-5

Visit Hitachi live at

Technical specs - ZW 220-5 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.83 t
Standard tyres
23.5 R25 L3
Bucket width
2.9 m
Bucket capacity min.
2.4 m³
Bucket capacity max.
3.5 m³
Steering mode
KL
Transport length
8.22 m
Transport width
2.83 m
Transport height
3.37 m
Travel speed
36 km/h
Max. discharge height
2.9 m
Turning radius outside
6.94 m
Lifting force
147 kN
Model series
ZW
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
145 kW
Displacement
6.69 l
Revolutions at max torque
1400 rpm
Emission level
III B

More technical details, like: bucket capacity, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
Yes
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi ZW 220-5 FAQ

When was the Hitachi ZW 220-5 manufactured?

The Hitachi ZW 220-5 was manufactured from 2013 to 2015.

How much does the Hitachi ZW 220-5 weigh?

The Hitachi ZW 220-5 weighs 17.83 tons.

What are the transport dimensions of the Hitachi ZW 220-5 wheel loader?

The Hitachi ZW 220-5 has a transport length of 8.22 meters, a transport width of 2.83 meters, and a transport height of 3.37 meters.

What is the travel speed of the Hitachi ZW 220-5 wheel loader?

The Hitachi ZW 220-5 has a travel speed of 36 km/h.

What are the undercarriage specifications of the Hitachi ZW 220-5?

The Hitachi ZW 220-5 is equipped with standard tyres sized 23.5 R25 L3.

What are the maneuverability specifications of the Hitachi ZW 220-5 wheel loader?

The Hitachi ZW 220-5 has an articulated-frame steering mode and an outside turning radius of 6.94 meters.

What is the lifting force of the Hitachi ZW 220-5 wheel loader?

The Hitachi ZW 220-5 wheel loader has a lifting force of 147 kN.

What is the maximum discharge height of the Hitachi ZW 220-5?

The Hitachi ZW 220-5 has a maximum discharge height of 2.9 meters.

What are the bucket specifications of the Hitachi ZW 220-5 wheel loader?

The Hitachi ZW 220-5 wheel loader has a bucket with a maximum capacity of 3.5 cubic meters, a minimum capacity of 2.4 cubic meters, and a width of 2.9 meters.
