ZW 150 PL Hitachi ZW 150 PL Specifications & Technical Data (2009—2014)

The Hitachi ZW 150 PL is a wheel loader manufactured from 2009 to 2014. It has a weight of 13.4 tons and a maximum discharge heigh…

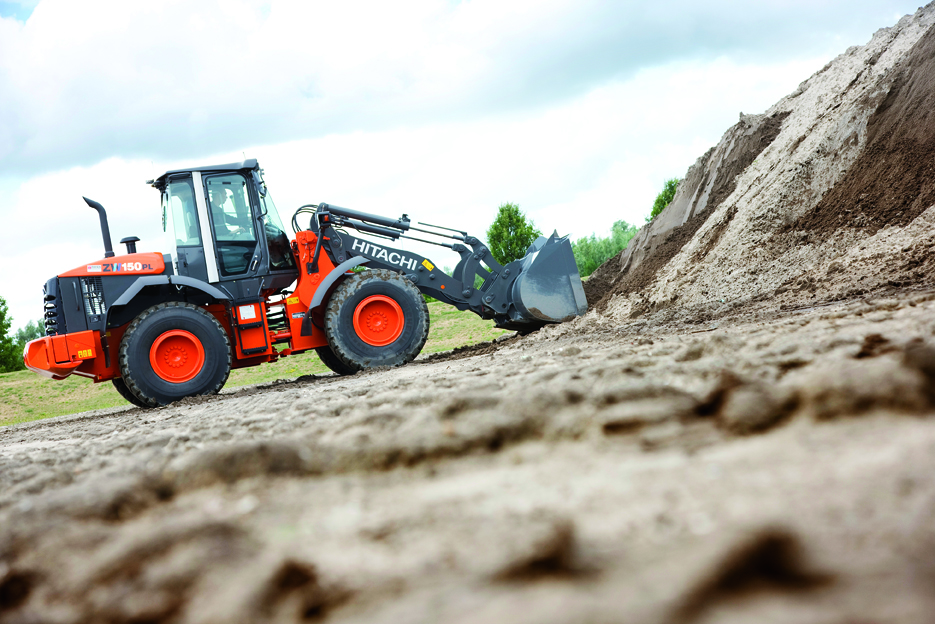

The Hitachi ZW 150 PL is a wheel loader manufactured from 2009 to 2014. It has a weight of 13.4 tons and a maximum discharge height of 2.81 meters. The travel speed is 39 km/h, and the transport width is 2.55 meters. The transport height is 3.26 meters, and it has a lifting force of 106.7 kN. The turning radius outside is 5.83 meters, and the bucket capacity ranges from 2 to 2.1 cubic meters. Special equipment includes air conditioning.

Wheel Loaders Hitachi ZW 150 PL
Wheel Loaders Hitachi ZW 150 PL
Wheel Loaders Hitachi ZW 150 PL
Wheel Loaders Hitachi ZW 150 PL

Visit Hitachi live at

Technical specs - ZW 150 PL Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.4 t
Standard tyres
20.5 R25 L3
Bucket capacity min.
2 m³
Bucket capacity max.
2.1 m³
Steering mode
KL
Transport width
2.55 m
Transport height
3.26 m
Travel speed
39 km/h
Max. discharge height
2.81 m
Turning radius outside
5.83 m
Lifting force
106.7 kN
Model series
ZW
Engine manuf.
Cummins
Engine type
QSB4.5
Engine power
107 kW
Displacement
4.46 l
Revolutions at max torque
1600 rpm

More technical details, like: bucket width, bucket capacity, transport length, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi ZW 150 PL FAQ

When was the Hitachi ZW 150 PL manufactured?

The Hitachi ZW 150 PL was manufactured from 2009 to 2014.

How much does the Hitachi ZW 150 PL wheel loader weigh?

The Hitachi ZW 150 PL wheel loader weighs 13.4 tons.

What are the transport dimensions of the Hitachi ZW 150 PL wheel loader?

The Hitachi ZW 150 PL has a transport width of 2.55 meters and a transport height of 3.26 meters.

What is the travel speed of the Hitachi ZW 150 PL wheel loader?

The Hitachi ZW 150 PL has a travel speed of 39 km/h.

What are the standard tyre specifications of the Hitachi ZW 150 PL?

The Hitachi ZW 150 PL wheel loader is equipped with standard tyres sized 20.5 R25 L3.

What are the maneuverability specifications of the Hitachi ZW 150 PL wheel loader?

The Hitachi ZW 150 PL has an articulated-frame steering mode and an outside turning radius of 5.83 meters.

What is the power rating of the Hitachi ZW 150 PL wheel loader?

The source data does not provide a power rating for the Hitachi ZW 150 PL wheel loader.

What is the maximum discharge height of the Hitachi ZW 150 PL wheel loader?

The Hitachi ZW 150 PL has a maximum discharge height of 2.81 meters.

What are the bucket capacity specifications of the Hitachi ZW 150 PL wheel loader?

The Hitachi ZW 150 PL wheel loader has a bucket capacity ranging from 2 to 2.1 cubic meters.

How much is a Hitachi ZW 150 PL Wheel loader (2009u20132014) worth?

The residual value of the Hitachi ZW 150 PL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
