LX 130 Hitachi LX 130 Specifications & Technical Data (2003—2026)

The Hitachi LX 130 is a wheel loader manufactured since 2003. It has a weight of 13.77 tons and a transport length of 7.52 meters.…

The Hitachi LX 130 is a wheel loader manufactured since 2003. It has a weight of 13.77 tons and a transport length of 7.52 meters. The bucket capacity is 3.2 cubic meters, with a bucket width of 2.69 meters. The maximum discharge height is 3.89 meters. It has a travel speed of 34.5 km/h and a transport width of 2.61 meters. The transport height is 3.24 meters. The lifting force of this machine is 125 kN. It has a turning radius outside of 5.23 meters. Additionally, it is equipped with air conditioning.

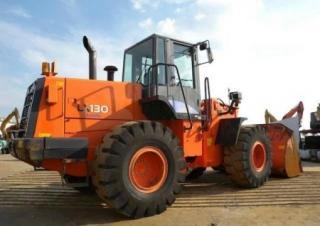

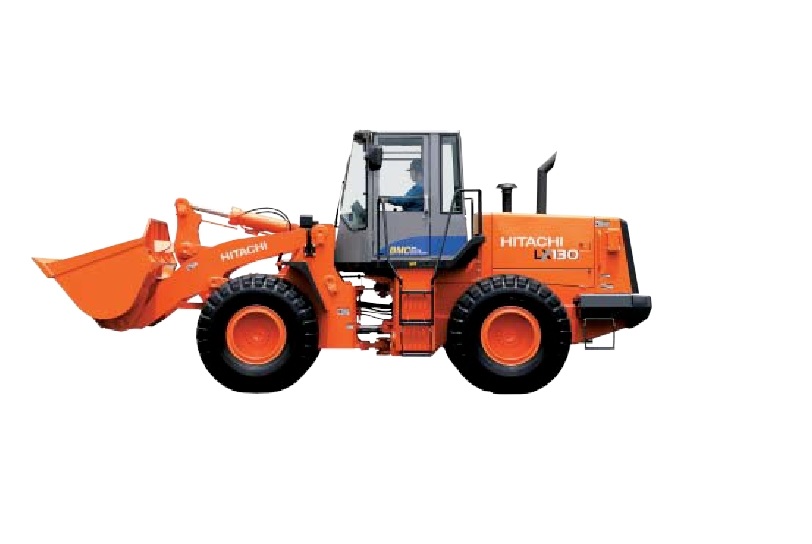

Wheel Loaders Hitachi LX 130
Wheel Loaders Hitachi LX 130
Wheel Loaders Hitachi LX 130
Wheel Loaders Hitachi LX 130

Visit Hitachi live at

Technical specs - LX 130 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.77 t
Standard tyres
20.5-25-12PR (L3)
Bucket width
2.69 m
Bucket capacity
3.2 m³
Steering mode
KL
Transport length
7.52 m
Transport width
2.61 m
Transport height
3.24 m
Travel speed
34.5 km/h
Max. discharge height
3.89 m
Turning radius outside
5.23 m
Lifting force
125 kN
Engine manuf.
Isuzu
Engine type
BB-6HK1T
Engine power
129 kW
Displacement
7.79 l
Revolutions at max torque
2300 rpm

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi LX 130 FAQ

When was the Hitachi LX 130 manufactured?

The Hitachi LX 130 was first produced in 2003.

How much does the Hitachi LX 130 wheel loader weigh?

The Hitachi LX 130 wheel loader weighs 13.77 tons.

What are the transport dimensions of the Hitachi LX 130 wheel loader?

The Hitachi LX 130 wheel loader has a transport length of 7.52 meters, a transport width of 2.61 meters, and a transport height of 3.24 meters.

What is the travel speed of the Hitachi LX 130 wheel loader?

The Hitachi LX 130 has a travel speed of 34.5 km/h.

What are the undercarriage specifications of the Hitachi LX 130 wheel loader?

The Hitachi LX 130 wheel loader is equipped with standard tyres sized 20.5-25-12PR (L3).

What are the maneuverability specifications of the Hitachi LX 130 wheel loader?

The Hitachi LX 130 wheel loader has an outside turning radius of 5.23 meters and features articulated-frame steering.

What is the lifting force of the Hitachi LX 130 wheel loader?

The Hitachi LX 130 wheel loader has a lifting force of 125 kN.

What is the maximum discharge height of the Hitachi LX 130?

The Hitachi LX 130 has a maximum discharge height of 3.89 meters.

What are the bucket specifications of the Hitachi LX 130 wheel loader?

The Hitachi LX 130 wheel loader has a bucket capacity of 3.2 cubic meters and a bucket width of 2.69 meters.

How much is a Hitachi LX 130 Wheel loader (2003u20132025) worth?

The residual value of the Hitachi LX 130 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
