G3500 Giant G3500 Specifications & Technical Data (2019—2026)

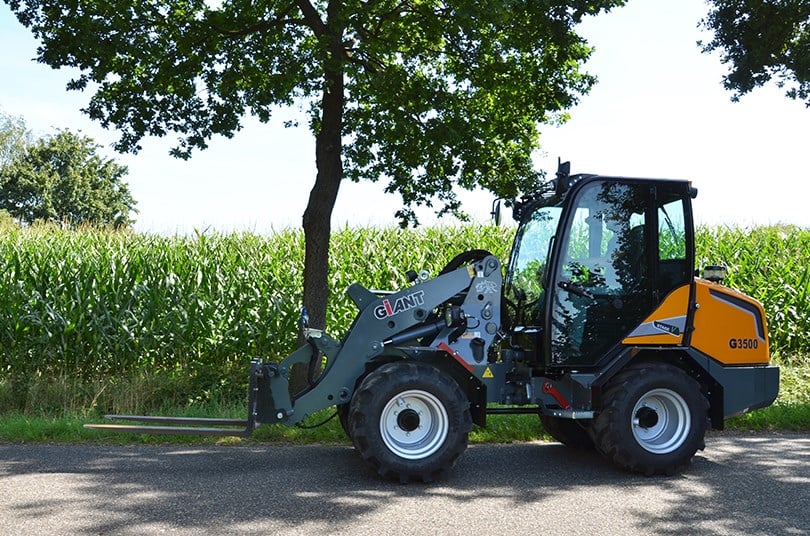

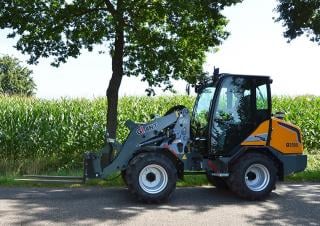

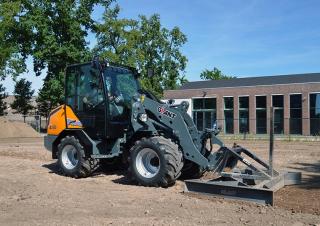

The Giant G3500 is a wheel loader manufactured since 2019. It has a weight of 3.5 tons and a transport length of 3.93 meters. The …

The Giant G3500 is a wheel loader manufactured since 2019. It has a weight of 3.5 tons and a transport length of 3.93 meters. The bucket width is 1.5 meters and the maximum discharge height is 2.49 meters. It has a travel speed of 28 km/h and a transport width of 1.47 meters. The transport height is 2.32 meters, and the lifting force is 26 kN. The turning radius outside is 2.85 meters, and it has a minimum bucket capacity of 0.44 cubic meters. Special equipment includes a diesel particulate filter and a quick hitch hydraulic mechanism.

G3500

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - G3500 Giant

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.5 t

Standard tyres: 31x15.50-15 X-TRAC

Bucket width: 1.5 m

Bucket capacity min.: 0.44 m³

Steering mode: KL

Transport length: 3.93 m

Transport width: 1.47 m

Transport height: 2.32 m

Travel speed: 28 km/h

Max. discharge height: 2.49 m

Turning radius outside: 2.85 m

Lifting force: 26 kN

Model series: G

Engine manuf.: Kubota

Engine type: V2403-CR-TE5B

Engine power: 48.5 kW

No. of cylinders: 4

Emission level: V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Giant G3500 FAQ

When was the Giant G3500 manufactured?

The Giant G3500 was first produced in 2019.

How much does the Giant G3500 wheel loader weigh?

The Giant G3500 wheel loader weighs 3.5 tons.

What are the transport dimensions of the Giant G3500 wheel loader?

The Giant G3500 has a transport length of 3.93 meters, a transport width of 1.47 meters, and a transport height of 2.32 meters.

What is the travel speed of the Giant G3500 wheel loader?

The Giant G3500 has a travel speed of 28 km/h.

What are the undercarriage specifications of the Giant G3500 wheel loader?

The Giant G3500 is equipped with standard tyres sized 31x15.50-15 X-TRAC.

What are the maneuverability specifications of the Giant G3500 wheel loader?

The Giant G3500 has an articulated-frame steering system and an outside turning radius of 2.85 meters.

What is the lifting force of the Giant G3500 wheel loader?

The Giant G3500 wheel loader has a lifting force of 26 kN.

What is the maximum discharge height of the Giant G3500?

The Giant G3500 has a maximum discharge height of 2.49 meters.

What are the specifications of the primary work tool on the Giant G3500 wheel loader?

The primary work tool of the Giant G3500 wheel loader has a minimum bucket capacity of 0.44 cubic meters and a bucket width of 1.5 meters.
