AL340 Gehl AL340 Specifications & Technical Data (2008—2021)

The Gehl AL340 is a wheel loader manufactured by Gehl from 2008 to 2021. It has a weight of 2.52 tons and a transport length of 3.…

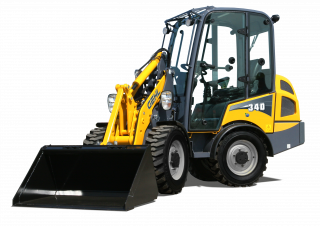

The Gehl AL340 is a wheel loader manufactured by Gehl from 2008 to 2021. It has a weight of 2.52 tons and a transport length of 3.975 meters. The bucket capacity is 0.32 cubic meters with a bucket width of 1.15 meters. The maximum discharge height is 2.095 meters and it has a travel speed of 18.5 km/h. The transport width is 1.065 meters and the transport height is 2.255 meters. The turning radius outside is 1.44 meters. The machine is equipped with a quick hitch mechanism.

AL340

Years of manufacture: 2008—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AL340 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.52 t

Standard tyres: 30.5x12.5-16.5

Bucket width: 1.15 m

Bucket capacity: 0.32 m³

Bucket capacity min.: 0.32 m³

Steering mode: KL

Transport length: 3.975 m

Transport width: 1.065 m

Transport height: 2.255 m

Travel speed: 18.5 km/h

Max. discharge height: 2.095 m

Turning radius outside: 1.44 m

Model series: AL

Engine manuf.: Yanmar

Engine type: 3TNV88

Engine power: 26 kW

Displacement: 1.6 l

Max. torque: 102.7/1680 Nm

No. of cylinders: 3

Emission level: 3A

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Gehl AL340 FAQ

When was the Gehl AL340 manufactured?

The Gehl AL340 was manufactured from 2008 to 2021.

How much does the Gehl AL340 wheel loader weigh?

The Gehl AL340 wheel loader weighs 2.52 tons.

What are the transport dimensions of the Gehl AL340 wheel loader?

The Gehl AL340 has a transport length of 3.98 meters, a transport width of 1.07 meters, and a transport height of 2.26 meters.

What is the travel speed of the Gehl AL340 wheel loader?

The Gehl AL340 has a travel speed of 18.5 km/h.

What are the undercarriage specifications of the Gehl AL340 wheel loader?

The Gehl AL340 wheel loader is equipped with standard tyres sized 30.5x12.5-16.5.

What are the maneuverability specifications of the Gehl AL340 wheel loader?

The Gehl AL340 wheel loader has an outside turning radius of 1.44 meters and uses articulated-frame steering.

What is the maximum discharge height of the Gehl AL340?

The Gehl AL340 has a maximum discharge height of 2.1 meters.

What are the specifications of the bucket on the Gehl AL340 wheel loader?

The Gehl AL340 wheel loader has a bucket capacity of 0.32 cubic meters, a minimum bucket capacity of 0.32 cubic meters, and a bucket width of 1.15 meters.

How much is a Gehl AL340 Wheel loader (2008u20132021) worth?

The residual value of the Gehl AL340 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
