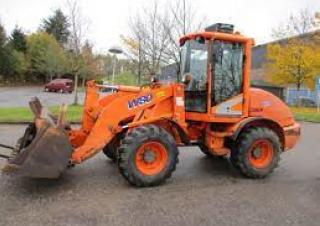

W 80 Fiat Kobelco W 80 Specifications & Technical Data (2002—2005)

The Fiat Kobelco W 80 is a wheel loader manufactured from 2002 to 2005. It has a weight of 5.7 tons and a transport length of 5.62…

The Fiat Kobelco W 80 is a wheel loader manufactured from 2002 to 2005. It has a weight of 5.7 tons and a transport length of 5.62 meters. The bucket capacity is 1.1 cubic meters, with a minimum capacity of 1.1 cubic meters. The transport width is 2.1 meters and the transport height is 2.77 meters. The special equipment included is a quick hitch mechanism.

Wheel Loaders Fiat Kobelco W 80

Technical specs - W 80 Fiat Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.7 t
Standard tyres
14.5-20
Bucket capacity
1.1 m³
Bucket capacity min.
1.1 m³
Steering mode
KL
Transport length
5.62 m
Transport width
2.1 m
Transport height
2.77 m
Engine manuf.
Perkins
Engine type
1004.42EI
Engine power
54 kW

More technical details, like: bucket width, bucket capacity max., travel speed, max. discharge height, turning radius outside, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket width, bucket capacity max., travel speed, max. discharge height, turning radius outside, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Fiat Kobelco W 80 FAQ

When was the Fiat Kobelco W 80 manufactured?

The Fiat Kobelco W 80 was manufactured from 2002 to 2005.

How much does the Fiat Kobelco W 80 weigh?

The Fiat Kobelco W 80 weighs 5.7 tons.

What are the transport dimensions of the Fiat Kobelco W 80 wheel loader?

The Fiat Kobelco W 80 has a transport length of 5.62 meters, a transport width of 2.1 meters, and a transport height of 2.77 meters.

What are the undercarriage specifications of the Fiat Kobelco W 80 wheel loader?

The Fiat Kobelco W 80 wheel loader is equipped with standard tyres sized 14.5-20.

What type of steering does the Fiat Kobelco W 80 use for maneuverability?

The Fiat Kobelco W 80 uses articulated-frame steering for maneuverability.

What is the bucket capacity of the Fiat Kobelco W 80 wheel loader?

The bucket capacity of the Fiat Kobelco W 80 wheel loader is 1.1 cubic meters.

How much is a Fiat Kobelco W 80 Wheel loader (2002u20132005) worth?

The residual value of the Fiat Kobelco W 80 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
