W 270 Evolution Fiat Kobelco W 270 Evolution Specifications & Technical Data (2002—2005)

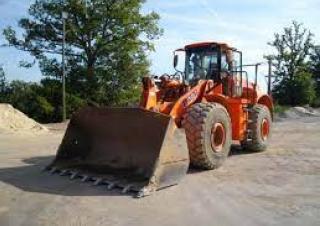

The Fiat Kobelco W 270 Evolution is a wheel loader manufactured from 2002 to 2005. It has a weight of 23.5 tons and a transport le…

The Fiat Kobelco W 270 Evolution is a wheel loader manufactured from 2002 to 2005. It has a weight of 23.5 tons and a transport length of 8.84 meters. The bucket capacity is 4 cubic meters, with a maximum capacity of 4.6 cubic meters and a minimum capacity of 4 cubic meters. The transport width is 2.96 meters and the transport height is 3.59 meters. This construction machine is equipped with air conditioning.

W 270 Evolution

Years of manufacture: 2002—2005

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - W 270 Evolution Fiat Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 23.5 t

Standard tyres: 26.5 R 25

Bucket capacity: 4 m³

Bucket capacity min.: 4 m³

Bucket capacity max.: 4.6 m³

Steering mode: KL

Transport length: 8.84 m

Transport width: 2.96 m

Transport height: 3.59 m

Engine manuf.: Cummins

Engine type: QSM11

Engine power: 200 kW

Displacement: 10.8 l

Revolutions at max torque: 1200 rpm

More technical details, like: bucket width, travel speed, max. discharge height, turning radius outside, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

W 270 Evolution Fiat Kobelco Specification for Europe (DE)

Fiat Kobelco W 270 Evolution FAQ

When was the Fiat Kobelco W 270 Evolution manufactured?

The Fiat Kobelco W 270 Evolution was manufactured from 2002 to 2005.

How much does the Fiat Kobelco W 270 Evolution weigh?

The Fiat Kobelco W 270 Evolution weighs 23.5 tons.

What are the transport dimensions of the Fiat Kobelco W 270 Evolution?

The Fiat Kobelco W 270 Evolution has a transport length of 8.84 meters, a transport width of 2.96 meters, and a transport height of 3.59 meters.

What is the size of the standard tyres on the Fiat Kobelco W 270 Evolution?

The Fiat Kobelco W 270 Evolution is equipped with standard tyres sized 26.5 R 25.

What is the steering mode of the Fiat Kobelco W 270 Evolution?

The Fiat Kobelco W 270 Evolution uses articulated-frame steering.

What are the bucket capacity specifications of the Fiat Kobelco W 270 Evolution wheel loader?

The Fiat Kobelco W 270 Evolution has a bucket capacity of 4 cubic meters, with a minimum capacity of 4 cubic meters and a maximum capacity of 4.6 cubic meters.

How much is a Fiat Kobelco W 270 Evolution Wheel loader (2002u20132005) worth?

The residual value of the Fiat Kobelco W 270 Evolution depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
