W 130 PL Fiat Kobelco W 130 PL Specifications & Technical Data (2002—2003)

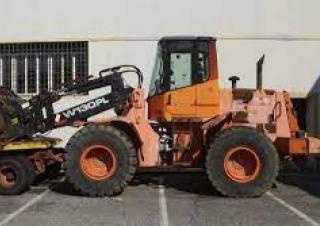

The Fiat Kobelco W 130 PL is a wheel loader manufactured from 2002 to 2003. It has a weight of 12.4 tons and a transport length of…

The Fiat Kobelco W 130 PL is a wheel loader manufactured from 2002 to 2003. It has a weight of 12.4 tons and a transport length of 7.29 meters. The bucket capacity is 2 cubic meters with a width of 2.545 meters. The maximum discharge height is 2.585 meters. It has a travel speed of 40 km/h and a transport width of 1.02 meters. The transport height is 3.33 meters and the turning radius outside is 5.9 meters. The machine is equipped with a quick hitch mechanism.

W 130 PL

Years of manufacture: 2002—2003

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - W 130 PL Fiat Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.4 t

Standard tyres: 20.5 R 25

Bucket width: 2.545 m

Bucket capacity: 2 m³

Bucket capacity min.: 2 m³

Steering mode: KL

Transport length: 7.29 m

Transport width: 1.02 m

Transport height: 3.33 m

Travel speed: 40 km/h

Max. discharge height: 2.585 m

Turning radius outside: 5.9 m

Engine manuf.: Fiat-Iveco

Engine type: 8065 T

Engine power: 96 kW

Displacement: 5.9 l

Revolutions at max torque: 2200 rpm

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

W 130 PL Fiat Kobelco Specification for Europe (DE)

Fiat Kobelco W 130 PL FAQ

When was the Fiat Kobelco W 130 PL manufactured?

The Fiat Kobelco W 130 PL was manufactured from 2002 to 2003.

How much does the Fiat Kobelco W 130 PL weigh?

The Fiat Kobelco W 130 PL weighs 12.4 tons.

What are the transport dimensions of the Fiat Kobelco W 130 PL wheel loader?

The Fiat Kobelco W 130 PL has a transport length of 7.29 meters, a transport width of 1.02 meters, and a transport height of 3.33 meters.

What is the travel speed of the Fiat Kobelco W 130 PL wheel loader?

The Fiat Kobelco W 130 PL has a travel speed of 40 km/h.

What are the undercarriage specifications of the Fiat Kobelco W 130 PL?

The Fiat Kobelco W 130 PL is equipped with standard tyres sized 20.5 R 25.

What are the maneuverability specifications of the Fiat Kobelco W 130 PL wheel loader?

The Fiat Kobelco W 130 PL has an articulated-frame steering system and an outside turning radius of 5.9 meters.

What is the maximum discharge height of the Fiat Kobelco W 130 PL wheel loader?

The Fiat Kobelco W 130 PL has a maximum discharge height of 2.59 meters.

What are the bucket specifications of the Fiat Kobelco W 130 PL wheel loader?

The Fiat Kobelco W 130 PL has a bucket capacity of 2 cubic meters, a minimum bucket capacity of 2 cubic meters, and a bucket width of 2.55 meters.
