W 130 Evolution Fiat Kobelco W 130 Evolution Specifications & Technical Data (2003—2005)

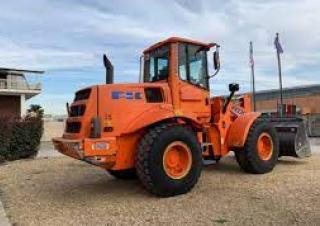

The Fiat Kobelco W 130 Evolution is a wheel loader manufactured from 2003 to 2005. It has a weight of 12 tons and a transport leng…

The Fiat Kobelco W 130 Evolution is a wheel loader manufactured from 2003 to 2005. It has a weight of 12 tons and a transport length of 7.18 meters. The bucket capacity is 2.1 cubic meters, with a width of 2.532 meters. The maximum discharge height is 2.85 meters. It has a travel speed of 38.5 km/h and a transport width of 2.53 meters. The transport height is 3.4 meters and the turning radius outside is 5.8 meters. The minimum bucket capacity is also 2.1 cubic meters.

W 130 Evolution

Years of manufacture: 2003—2005

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - W 130 Evolution Fiat Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12 t

Standard tyres: 20.5 R 25

Bucket width: 2.532 m

Bucket capacity: 2.1 m³

Bucket capacity min.: 2.1 m³

Transport length: 7.18 m

Transport width: 2.53 m

Transport height: 3.4 m

Travel speed: 38.5 km/h

Max. discharge height: 2.85 m

Turning radius outside: 5.8 m

Engine manuf.: Iveco

Engine type: NEF 6TAA-6802

Engine power: 101 kW

Displacement: 6.8 l

Revolutions at max torque: 2000 rpm

More technical details, like: bucket capacity max., steering mode, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

W 130 Evolution Fiat Kobelco Specification for Europe (DE)

Fiat Kobelco W 130 Evolution FAQ

When was the Fiat Kobelco W 130 Evolution manufactured?

The Fiat Kobelco W 130 Evolution was manufactured from 2003 to 2005.

How much does the Fiat Kobelco W 130 Evolution weigh?

The Fiat Kobelco W 130 Evolution weighs 12 tons.

What are the transport dimensions of the Fiat Kobelco W 130 Evolution?

The Fiat Kobelco W 130 Evolution has a transport length of 7.18 meters, a transport width of 2.53 meters, and a transport height of 3.4 meters.

What is the travel speed of the Fiat Kobelco W 130 Evolution?

The Fiat Kobelco W 130 Evolution has a travel speed of 38.5 km/h.

What is the standard tyre size of the Fiat Kobelco W 130 Evolution?

The Fiat Kobelco W 130 Evolution has standard tyres sized 20.5 R 25.

What is the turning radius of the Fiat Kobelco W 130 Evolution wheel loader?

The Fiat Kobelco W 130 Evolution has an outside turning radius of 5.8 meters.

What is the maximum discharge height of the Fiat Kobelco W 130 Evolution?

The Fiat Kobelco W 130 Evolution has a maximum discharge height of 2.85 meters.

What are the bucket specifications of the Fiat Kobelco W 130 Evolution wheel loader?

The bucket of the Fiat Kobelco W 130 Evolution has a capacity of 2.1 cubic meters, a minimum capacity of 2.1 cubic meters, and a width of 2.53 meters.
