W 110 Evolution Fiat Kobelco W 110 Evolution Specifications & Technical Data (2003—2005)

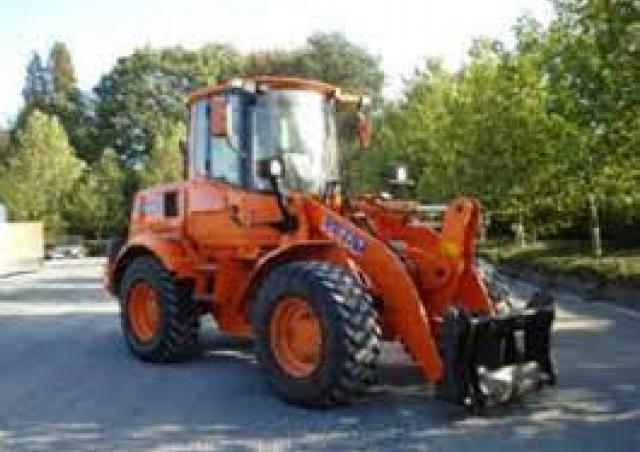

The Fiat Kobelco W 110 Evolution is a wheel loader manufactured from 2003 to 2005. It has a weight of 10.5 tons and a transport le…

The Fiat Kobelco W 110 Evolution is a wheel loader manufactured from 2003 to 2005. It has a weight of 10.5 tons and a transport length of 6.765 meters. The bucket capacity is 1.8 cubic meters, and the maximum discharge height is 2.744 meters. It has a travel speed of 37.6 km/h and a transport width of 2.482 meters. The transport height is 4.684 meters, and the lifting force is 92.4 kN. The turning radius outside is 5.5 meters, and the minimum bucket capacity is 1.8 cubic meters.

Wheel Loaders Fiat Kobelco W 110 Evolution

Technical specs - W 110 Evolution Fiat Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.5 t
Standard tyres
17.5 R 25
Bucket capacity
1.8 m³
Bucket capacity min.
1.8 m³
Steering mode
KL
Transport length
6.765 m
Transport width
2.482 m
Transport height
4.684 m
Travel speed
37.6 km/h
Max. discharge height
2.744 m
Turning radius outside
5.5 m
Lifting force
92.4 kN
Engine manuf.
Iveco
Engine type
NEF 4TAA-4502
Engine power
82 kW
Displacement
4.5 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket width, bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Fiat Kobelco W 110 Evolution FAQ

When was the Fiat Kobelco W 110 Evolution manufactured?

The Fiat Kobelco W 110 Evolution was manufactured from 2003 to 2005.

How much does the Fiat Kobelco W 110 Evolution weigh?

The Fiat Kobelco W 110 Evolution weighs 10.5 tons.

What are the transport dimensions of the Fiat Kobelco W 110 Evolution?

The Fiat Kobelco W 110 Evolution has a transport length of 6.77 meters, a transport width of 2.48 meters, and a transport height of 4.68 meters.

What is the travel speed of the Fiat Kobelco W 110 Evolution?

The Fiat Kobelco W 110 Evolution has a travel speed of 37.6 km/h.

What is the standard tyre size of the Fiat Kobelco W 110 Evolution?

The Fiat Kobelco W 110 Evolution has standard tyres sized 17.5 R 25.

What are the maneuverability specifications of the Fiat Kobelco W 110 Evolution?

The Fiat Kobelco W 110 Evolution has an articulated-frame steering mode and an outside turning radius of 5.5 meters.

What are the power ratings of the Fiat Kobelco W 110 Evolution?

There are no power rating specifications available for the Fiat Kobelco W 110 Evolution in the provided data.

What is the maximum discharge height of the Fiat Kobelco W 110 Evolution wheel loader?

The Fiat Kobelco W 110 Evolution has a maximum discharge height of 2.74 meters.

What is the bucket capacity of the Fiat Kobelco W 110 Evolution?

The bucket capacity of the Fiat Kobelco W 110 Evolution is 1.8 cubic meters.
