DL350-3 Doosan DL350-3 Specifications & Technical Data (2013—2017)

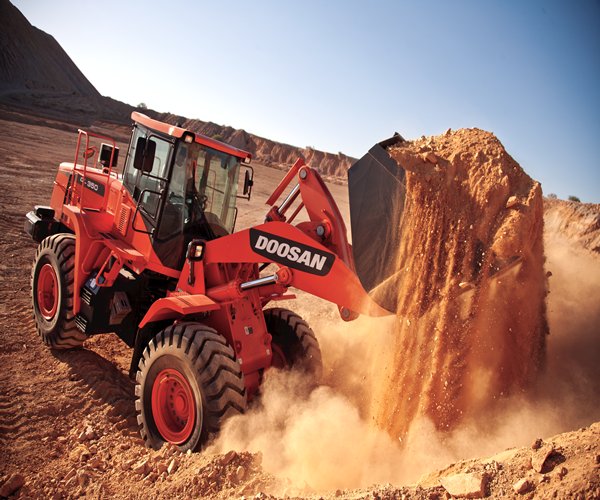

The Doosan DL350-3 is a wheel loader manufactured by Doosan from 2013 to 2017. It has a weight of 19.7 tons and a transport length…

The Doosan DL350-3 is a wheel loader manufactured by Doosan from 2013 to 2017. It has a weight of 19.7 tons and a transport length of 8.367 meters. The bucket width is 2.92 meters, and it has a maximum discharge height of 3 meters. The travel speed of this wheel loader is 37 km/h. It has a transport width of 3 meters and a transport height of 3.426 meters. The lifting force of the DL350-3 is 171 kN, and it has a turning radius outside of 6.6 meters. The bucket capacity ranges from a minimum of 3.5 cubic meters. Additionally, this construction machine is equipped with air conditioning.

DL350-3

Years of manufacture: 2013—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DL350-3 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 19.7 t

Standard tyres: 23.5-25 16

Bucket width: 2.92 m

Bucket capacity min.: 3.5 m³

Steering mode: KL

Transport length: 8.367 m

Transport width: 3 m

Transport height: 3.426 m

Travel speed: 37 km/h

Max. discharge height: 3 m

Turning radius outside: 6.6 m

Lifting force: 171 kN

Model series: DL

Engine manuf.: Scania

Engine type: DC 9

Engine power: 202 kW

Displacement: 9.3 l

Revolutions at max torque: 1400 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Doosan DL350-3 FAQ

When was the Doosan DL350-3 manufactured?

The Doosan DL350-3 was manufactured from 2013 to 2017.

How much does the Doosan DL350-3 wheel loader weigh?

The Doosan DL350-3 wheel loader weighs 19.7 tons.

What are the transport dimensions of the Doosan DL350-3 wheel loader?

The Doosan DL350-3 has a transport length of 8.37 meters, a transport width of 3 meters, and a transport height of 3.43 meters.

What is the travel speed of the Doosan DL350-3 wheel loader?

The Doosan DL350-3 has a travel speed of 37 km/h.

What is the standard tyre size of the Doosan DL350-3 wheel loader?

The Doosan DL350-3 wheel loader has standard tyres sized 23.5-25 16.

What are the maneuverability specifications of the Doosan DL350-3 wheel loader?

The Doosan DL350-3 has an outside turning radius of 6.6 meters and uses articulated-frame steering for maneuverability.

What is the lifting force of the Doosan DL350-3 wheel loader?

The Doosan DL350-3 wheel loader has a lifting force of 171 kN.

What is the maximum discharge height of the Doosan DL350-3?

The Doosan DL350-3 has a maximum discharge height of 3 meters.

What are the bucket specifications of the Doosan DL350-3 wheel loader?

The Doosan DL350-3 wheel loader has a bucket with a minimum capacity of 3.5 cubic meters and a width of 2.92 meters.

How much is a Doosan DL350-3 Wheel loader (2013u20132017) worth?

The residual value of the Doosan DL350-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
