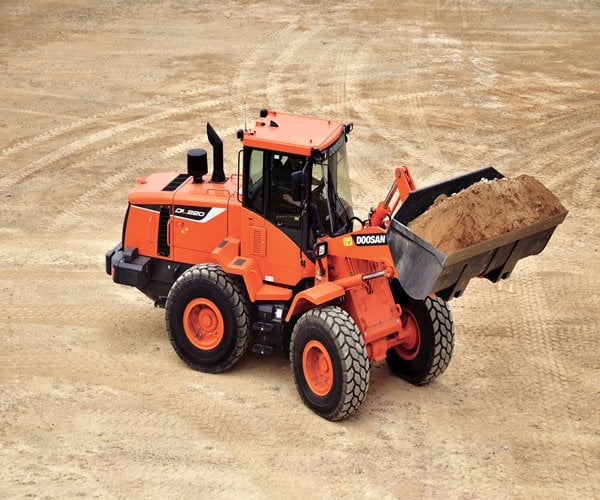

DL220-5 Doosan DL220-5 Specifications & Technical Data (2016—2022)

The Doosan DL220-5 is a wheel loader manufactured from 2016 to 2022. It has a weight of 12.36 tons and a transport length of 7.54 …

The Doosan DL220-5 is a wheel loader manufactured from 2016 to 2022. It has a weight of 12.36 tons and a transport length of 7.54 meters. The bucket width is 2.55 meters and the maximum discharge height is 2.75 meters. It has a travel speed of 39 km/h and a transport width and height of 2.55 meters and 3.28 meters, respectively. The lifting force is 102 kN and the turning radius outside is 5.97 meters. The minimum bucket capacity is 2.3 cubic meters.

DL220-5

Years of manufacture: 2016—2022

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DL220-5 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.36 t

Standard tyres: 20.5 R 25

Bucket width: 2.55 m

Bucket capacity min.: 2.3 m³

Steering mode: KL

Transport length: 7.54 m

Transport width: 2.55 m

Transport height: 3.28 m

Travel speed: 39 km/h

Max. discharge height: 2.75 m

Turning radius outside: 5.97 m

Lifting force: 102 kN

Model series: DL

Engine manuf.: Doosan

Engine type: DL 06

Engine power: 119 kW

Displacement: 5.9 l

Revolutions at max torque: 1400 rpm

Max. torque: 735 Nm

No. of cylinders: 6

Cylinder bore x stroke: 100 x 125 mm

Emission level: Stage IV

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Doosan DL220-5 FAQ

When was the Doosan DL220-5 manufactured?

The Doosan DL220-5 was manufactured from 2016 to 2022.

How much does the Doosan DL220-5 wheel loader weigh?

The Doosan DL220-5 wheel loader weighs 12.36 tons.

What are the transport dimensions of the Doosan DL220-5 wheel loader?

The Doosan DL220-5 has a transport length of 7.54 meters, a transport width of 2.55 meters, and a transport height of 3.28 meters.

What is the travel speed of the Doosan DL220-5 wheel loader?

The Doosan DL220-5 has a travel speed of 39 km/h.

What are the undercarriage specifications of the Doosan DL220-5 wheel loader?

The Doosan DL220-5 wheel loader is equipped with standard tyres sized 20.5 R 25.

What are the maneuverability specifications of the Doosan DL220-5 wheel loader?

The Doosan DL220-5 wheel loader has an articulated-frame steering mode and an outside turning radius of 5.97 meters.

What is the power rating of the Doosan DL220-5 wheel loader?

The available data does not provide a power rating for the Doosan DL220-5 wheel loader.

What is the material handling capacity of the Doosan DL220-5 in terms of discharge height?

The Doosan DL220-5 has a maximum discharge height of 2.75 meters.

What are the bucket specifications of the Doosan DL220-5 wheel loader?

The Doosan DL220-5 wheel loader has a bucket with a minimum capacity of 2.3 cubic meters and a width of 2.55 meters.
