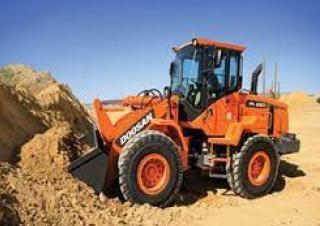

DL220-3 Doosan DL220-3 Specifications & Technical Data (2013—2022)

The Doosan DL220-3 is a wheel loader manufactured by Doosan from 2013 to 2022. It has a weight of 12.1 tons and a transport length…

The Doosan DL220-3 is a wheel loader manufactured by Doosan from 2013 to 2022. It has a weight of 12.1 tons and a transport length of 7.2 meters. The bucket capacity is 2 cubic meters with a width of 2.5 meters. The maximum discharge height is 3.8 meters. It has a travel speed of 38 km/h and a transport width of 2.5 meters. The transport height is 3.2 meters. The lifting force of this machine is 98 kN. It is equipped with a diesel particulate filter.

DL220-3

Years of manufacture: 2013—2022

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DL220-3 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.1 t

Standard tyres: 20.5-25

Bucket width: 2.5 m

Bucket capacity: 2 m³

Transport length: 7.2 m

Transport width: 2.5 m

Transport height: 3.2 m

Travel speed: 38 km/h

Max. discharge height: 3.8 m

Lifting force: 98 kN

Engine manuf.: Doosan

Engine type: DL06

Engine power: 119 kW

Displacement: 5.9 l

Revolutions at max torque: 2100 rpm

No. of cylinders: 6

Emission level: Tier 4

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Doosan DL220-3 FAQ

When was the Doosan DL220-3 manufactured?

The Doosan DL220-3 was manufactured from 2013 to 2022.

How much does the Doosan DL220-3 wheel loader weigh?

The Doosan DL220-3 wheel loader weighs 12.1 tons.

What are the transport dimensions of the Doosan DL220-3 wheel loader?

The Doosan DL220-3 has a transport length of 7.2 meters, a transport width of 2.5 meters, and a transport height of 3.2 meters.

What is the travel speed of the Doosan DL220-3 wheel loader?

The Doosan DL220-3 has a travel speed of 38 km/h.

What is the standard tyre size of the Doosan DL220-3 wheel loader?

The Doosan DL220-3 wheel loader has standard tyres sized 20.5-25.

What is the lifting force of the Doosan DL220-3 wheel loader?

The Doosan DL220-3 wheel loader has a lifting force of 98 kN. The source data does not provide other power ratings.

What is the maximum discharge height of the Doosan DL220-3?

The Doosan DL220-3 has a maximum discharge height of 3.8 meters.

What are the specifications of the primary work tool bucket on the Doosan DL220-3?

The Doosan DL220-3's bucket has a capacity of 2 cubic meters and a width of 2.5 meters.

How much is a Doosan DL220-3 Wheel loader (2013u20132022) worth?

The residual value of the Doosan DL220-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
