DL200A-2 Doosan DL200A-2 Specifications & Technical Data (2019—2021)

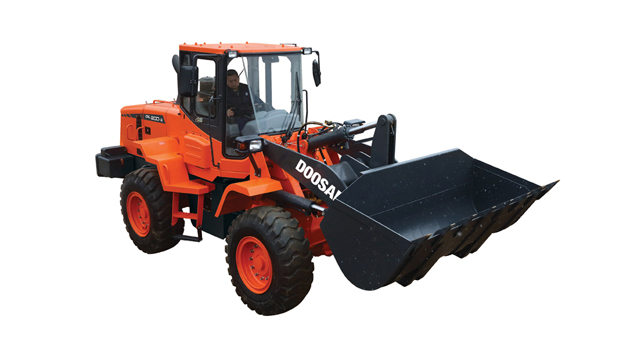

The Doosan DL200A-2 is a wheel loader manufactured from 2019 to 2021. It has a weight of 11.4 tons and a transport length of 7.32 …

The Doosan DL200A-2 is a wheel loader manufactured from 2019 to 2021. It has a weight of 11.4 tons and a transport length of 7.32 meters. The bucket width is 2.55 meters and the maximum discharge height is 2.64 meters. It has a travel speed of 36.9 km/h and a transport width and height of 2.55 meters and 3.17 meters, respectively. The lifting force is 108 kN and the turning radius outside is 5.81 meters. The minimum bucket capacity is 2 cubic meters, and it is equipped with air conditioning.

DL200A-2

Years of manufacture: 2019—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DL200A-2 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11.4 t

Standard tyres: 17.5-25-12PR TRI(L3)

Bucket width: 2.55 m

Bucket capacity min.: 2 m³

Transport length: 7.32 m

Transport width: 2.55 m

Transport height: 3.17 m

Travel speed: 36.9 km/h

Max. discharge height: 2.64 m

Turning radius outside: 5.81 m

Lifting force: 108 kN

Model series: DL

Engine manuf.: Doosan

Engine type: DB58

Engine power: 109 kW

Displacement: 5.9 l

Revolutions at max torque: 1400 rpm

Max. torque: 637 Nm

No. of cylinders: 6

Cylinder bore x stroke: 100 x 125 mm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

DL200A-2 Doosan Specification for Europe (EN)

Doosan DL200A-2 FAQ

When was the Doosan DL200A-2 manufactured?

The Doosan DL200A-2 was manufactured from 2019 to 2021.

How much does the Doosan DL200A-2 weigh?

The Doosan DL200A-2 weighs 11.4 tons.

What are the transport dimensions of the Doosan DL200A-2 wheel loader?

The Doosan DL200A-2 has a transport length of 7.32 meters, a transport width of 2.55 meters, and a transport height of 3.17 meters.

What is the travel speed of the Doosan DL200A-2 wheel loader?

The Doosan DL200A-2 has a travel speed of 36.9 km/h.

What are the undercarriage specifications of the Doosan DL200A-2 wheel loader?

The Doosan DL200A-2 wheel loader is equipped with standard tyres sized 17.5-25-12PR TRI(L3).

What is the turning radius of the Doosan DL200A-2 wheel loader?

The Doosan DL200A-2 has an outside turning radius of 5.81 meters.

What power ratings are available for the Doosan DL200A-2 wheel loader?

There are no power rating specifications available for the Doosan DL200A-2 wheel loader in the provided data.

What is the maximum discharge height of the Doosan DL200A-2?

The Doosan DL200A-2 has a maximum discharge height of 2.64 meters.

What are the bucket specifications of the Doosan DL200A-2 wheel loader?

The Doosan DL200A-2 wheel loader has a minimum bucket capacity of 2 cubic meters and a bucket width of 2.55 meters.

How much is a Doosan DL200A-2 Wheel loader (2019u20132021) worth?

The residual value of the Doosan DL200A-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
