DL200A Doosan DL200A Specifications & Technical Data (2019—2023)

The Doosan DL200A is a wheel loader manufactured since 2019. It has a weight of 11.16 tons and a transport length of 7.32 meters. …

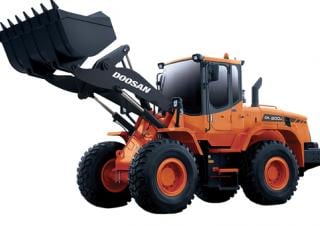

The Doosan DL200A is a wheel loader manufactured since 2019. It has a weight of 11.16 tons and a transport length of 7.32 meters. The bucket capacity is 2 cubic meters with a width of 2.55 meters. The maximum discharge height is 2.73 meters. It has a travel speed of 37 km/h and a transport width of 2.55 meters. The transport height is 3.24 meters. The lifting force is 103 kN and the turning radius outside is 5.21 meters. The machine is equipped with air conditioning.

DL200A

Years of manufacture: 2019—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DL200A Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11.16 t

Standard tyres: 20.5-25-16PR TRI(L3)

Bucket width: 2.55 m

Bucket capacity: 2 m³

Bucket capacity min.: 2 m³

Transport length: 7.32 m

Transport width: 2.55 m

Transport height: 3.24 m

Travel speed: 37 km/h

Max. discharge height: 2.73 m

Turning radius outside: 5.21 m

Lifting force: 103 kN

Model series: DL

Engine manuf.: Doosan

Engine type: DB58TI

Engine power: 121 kW

Displacement: 5.8 l

Revolutions at max torque: 1400 rpm

Max. torque: 637 Nm

No. of cylinders: 6

Cylinder bore x stroke: 102 x 118 mm

Emission level: Tier 1

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

DL200A Doosan Specification for Europe (EN)

Doosan DL200A FAQ

When was the Doosan DL200A manufactured?

The Doosan DL200A was manufactured from 2019 to 2023.

How much does the Doosan DL200A wheel loader weigh?

The Doosan DL200A wheel loader weighs 11.16 tons.

What are the transport dimensions of the Doosan DL200A wheel loader?

The Doosan DL200A has a transport length of 7.32 meters, a transport width of 2.55 meters, and a transport height of 3.24 meters.

What is the travel speed of the Doosan DL200A wheel loader?

The Doosan DL200A has a travel speed of 37 km/h.

What are the undercarriage specifications of the Doosan DL200A wheel loader?

The Doosan DL200A wheel loader is equipped with standard tyres sized 20.5-25-16PR TRI(L3).

What is the outside turning radius of the Doosan DL200A wheel loader?

The Doosan DL200A has an outside turning radius of 5.21 meters.

What is the lifting force of the Doosan DL200A wheel loader?

The Doosan DL200A wheel loader has a lifting force of 103 kN.

What is the maximum discharge height of the Doosan DL200A?

The Doosan DL200A has a maximum discharge height of 2.73 meters.

What are the specifications of the primary work tool bucket on the Doosan DL200A wheel loader?

The Doosan DL200A wheel loader has a bucket with a capacity of 2 cubic meters, a minimum bucket capacity of 2 cubic meters, and a bucket width of 2.55 meters.

How much is a Doosan DL200A Wheel loader (2019u20132023) worth?

The residual value of the Doosan DL200A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
