DL 500 Doosan DL 500 Specifications & Technical Data (2008—2013)

Model rating: 9,00 / 10

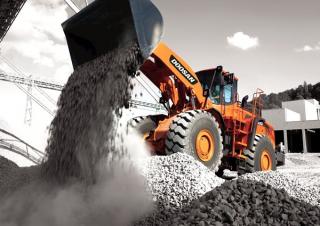

The Doosan DL 500 is a wheel loader manufactured from 2008 to 2013. It has a weight of 30.7 tons and a bucket capacity of 4.8 cubi…

The Doosan DL 500 is a wheel loader manufactured from 2008 to 2013. It has a weight of 30.7 tons and a bucket capacity of 4.8 cubic meters, with a bucket width of 3.4 meters. The maximum discharge height is 4.58 meters, and it has a travel speed of 35 km/h. The transport width is 3.53 meters, and the transport height is 3.4 meters. It has a lifting force of 273 kN and a turning radius outside of 7.37 meters. Special equipment includes air conditioning.

DL 500

Years of manufacture: 2008—2013

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Reviews
Transport
News

Technical specs - DL 500 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 30.7 t

Standard tyres: 29.5 R25-22

Bucket width: 3.4 m

Bucket capacity: 4.8 m³

Bucket capacity min.: 4.8 m³

Steering mode: KL

Transport width: 3.53 m

Transport height: 3.4 m

Travel speed: 35 km/h

Max. discharge height: 4.58 m

Turning radius outside: 7.37 m

Lifting force: 273 kN

Model series: DL

Engine manuf.: Cummins

Engine type: QSM11

Engine power: 250 kW

Displacement: 10.8 l

Revolutions at max torque: 2100 rpm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Doosan DL 500 FAQ

When was the Doosan DL 500 manufactured?

The Doosan DL 500 was manufactured from 2008 to 2013.

How much does the Doosan DL 500 weigh?

The Doosan DL 500 weighs 30.7 tons.

What are the transport dimensions of the Doosan DL 500 wheel loader?

The Doosan DL 500 has a transport width of 3.53 meters and a transport height of 3.4 meters.

What is the travel speed of the Doosan DL 500 wheel loader?

The Doosan DL 500 has a travel speed of 35 km/h.

What are the standard tyres of the Doosan DL 500 wheel loader?

The Doosan DL 500 wheel loader is equipped with standard tyres sized 29.5 R25-22.

What are the maneuverability specifications of the Doosan DL 500 wheel loader?

The Doosan DL 500 wheel loader has an articulated-frame steering mode and an outside turning radius of 7.37 meters.

What is the lifting force of the Doosan DL 500 wheel loader?

The Doosan DL 500 wheel loader has a lifting force of 273 kN.

What is the maximum discharge height of the Doosan DL 500?

The Doosan DL 500 has a maximum discharge height of 4.58 meters.

What are the bucket specifications of the Doosan DL 500 wheel loader?

The Doosan DL 500 wheel loader has a bucket capacity of 4.8 cubic meters, a minimum bucket capacity of 4.8 cubic meters, and a bucket width of 3.4 meters.

How much is a Doosan DL 500 Wheel loader (2008u20132013) worth?

The residual value of the Doosan DL 500 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Model rating: 9,00 / 10

Doosan DL 500 user from

We have a DL500 and a DL 450 and they have been very reliable upto now with around 9000hours on the clock.

Doosan DL 500 overview

Engine / Powertrain / Drivetrain

Engine

Cummins QSM11: Turbo Charged Air to Air Intercooler Electronically Controlled Common Rail Direct Injected 659 cu.in., 6 Cylinder 335 SAE Gross Flywheel Horsepower @ 1,900 RPM Air Cleaner: Dry Type (Double Stage) Engine Self Diagnostic System Plastic Reversible Fan Driven by Hydraulic Fan Motor.

Brake System

Dual Pedal Braking system 4 Wheel Outboard Wet Disc Brakes with Separate Front & Rear Circuits Accumulator for Emergency Stopping Parking Brake: Spring Apply Hydraulic Release on Output Shaft of Transmission.

Transmission / Axles

Full Automatic Power Shift 4 Forward & 3 Reverse Speeds Differentials Limited Slip Front & Rear Self Adjusting Brake Disc Clearance Torque Converter, Free Wheel Stator Electrical T/M Clutch Disconnect with Service Brake T/M Down Shift on Shift Control and Joy Stick Control Transmission Oil Level Gauge.

Hydraulic system

Hydraulic System

Two Load Sensing Axial Piston Pumps with Variable Displacement 63.3 GPM 2 Spool Type Control Valve (Pilot Operated) 3rd Valve with Lines & Control (lines terminate at boom base) Automatic Boom / Lift Kick-Out (Adjustable Electro-Magnetic) Automatic Return-to-Dig Position (Adjustable Electro-Magnetic) Accumulator for Emergency Pilot System.

Steering

Load Sensing Type with a Flow Amplifier and a Priority Valve 40 Degree Articulation, Full Hydraulic Power Steering Steering Cylinder Cushion Valve Tilt and Telescopic Steering Wheel.
