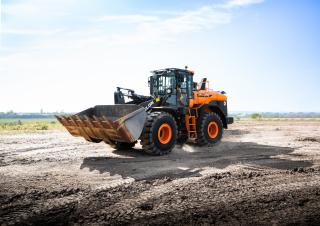

DL320-7 Develon DL320-7 Specifications & Technical Data (2023—2026)
Visit Develon live at
.jpg){kind=logo}
Technical specs - DL320-7 Develon
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 19.7 t
- Standard tyres
- 23.5 R25
- Bucket width
- 3 m
- Bucket capacity
- 3.3 m³
- Bucket capacity min.
- 3.3 m³
- Bucket capacity max.
- 3.8 m³
- Steering mode
- KL
- Transport length
- 8.53 m
- Transport width
- 3 m
- Transport height
- 3.511 m
- Travel speed
- 40 km/h
- Max. discharge height
- 2.887 m
- Turning radius outside
- 6.009 m
- Lifting force
- 170 kN
- Model series
- DL
- Engine manuf.
- Develon
- Engine type
- DL08V
- Engine power
- 202 kW
- Dimension lxwxh
- 1214x801x1085 mm
- Displacement
- 7.64 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 1275/1300 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 108x139 mm
- Emission level
- Stage V
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
Yes
- Swing loader
-
No
- telescopic
-
No
- Aircondition
-
Yes
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
