967H Changlin 967H Specifications & Technical Data (2017—2026)

The Changlin 967H is a wheel loader manufactured since 2017. It has a weight of 18.6 tons and a transport length of 8.28 meters. T…

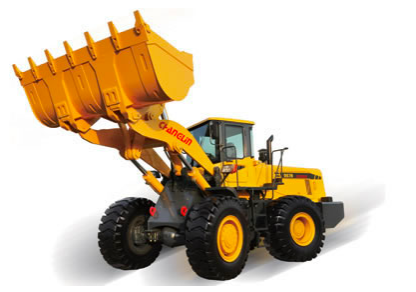

The Changlin 967H is a wheel loader manufactured since 2017. It has a weight of 18.6 tons and a transport length of 8.28 meters. The bucket width is 3.048 meters, and it has a maximum discharge height of 3.028 meters. The travel speed of this wheel loader is 35 km/h. It has a transport width of 2.897 meters and a transport height of 3.545 meters. The lifting force of the machine is 190 kN, and it has a turning radius outside of 6.87 meters. The bucket capacity is a minimum of 3.5 cubic meters.

Wheel Loaders Changlin 967H

Technical specs - 967H Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.6 t
Standard tyres
23.5-25-16PR
Bucket width
3.048 m
Bucket capacity min.
3.5 m³
Transport length
8.28 m
Transport width
2.897 m
Transport height
3.545 m
Travel speed
35 km/h
Max. discharge height
3.028 m
Turning radius outside
6.87 m
Lifting force
190 kN
Model series
H
Engine manuf.
Cummins
Engine type
6CTAA8.3-C240
Engine power
179 kW
Revolutions at max torque
2200 rpm
Max. torque
1040 Nm
Emission level
Euro II

More technical details, like: bucket capacity, bucket capacity max., steering mode, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Changlin 967H FAQ

When was the Changlin 967H manufactured?

The Changlin 967H was first produced in 2017.

How much does the Changlin 967H wheel loader weigh?

The Changlin 967H wheel loader weighs 18.6 tons.

What are the transport dimensions of the Changlin 967H wheel loader?

The Changlin 967H has a transport length of 8.28 meters, a transport width of 2.9 meters, and a transport height of 3.55 meters.

What is the travel speed of the Changlin 967H wheel loader?

The Changlin 967H has a travel speed of 35 km/h.

What are the undercarriage specifications of the Changlin 967H wheel loader?

The Changlin 967H wheel loader is equipped with standard tyres sized 23.5-25-16PR.

What is the turning radius of the Changlin 967H wheel loader?

The Changlin 967H wheel loader has an outside turning radius of 6.87 meters.

What is the lifting force of the Changlin 967H wheel loader?

The Changlin 967H wheel loader has a lifting force of 190 kN.

What is the material handling capacity of the Changlin 967H in terms of discharge height?

The Changlin 967H has a maximum discharge height of 3.03 meters.

What are the bucket specifications of the Changlin 967H wheel loader?

The Changlin 967H wheel loader has a bucket with a minimum capacity of 3.5 cubic meters and a width of 3.05 meters.

How much is a Changlin 967H Wheel loader (2017u20132025) worth?

The residual value of the Changlin 967H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Changlin 967H overview

Engine / Powertrain / Drivetrain

Best Matched Power Train

Performance-proved Cummins or Shangchai diesel engine conforming to environmental requirements offers sufficient power to suit various tough tasks. The shifting control handle adopts electronic induction control, providing a long service lifetime. An independent radiation system has been adopted, which makes the thermal balance system of the whole machine more reasonable and reliable. Additionally, the wet-type axles require free maintenance and feature high reliability.


Hydraulic system

High Efficiency Hydraulic System

Imported single handle PPC features comfortable, easy, and accurate operation with fast reaction. The combined flow of two pumps saves energy and increases efficiency. Additionally, the hydraulic tank with a vacuum device ensures easy maintenance and fixing of the hydraulic system.


Operator's cab

Engine and Performance

Equipped with SHANGCHAI engine or CUMMINS engine (made in U.K.), customizing ZF fixed-shaft TM and 3-elements T/C are mature and reliable. The KD switch offers better efficiency and easy operation, while the bucket automatic leveling device enhances functionality. Additionally, ZF or Graziano axles with multi-disc wet-type brakes and limited-slip differentials are more adaptable to tough working sites. Luxury cab decoration and A/C provide operator comfort.


Luxury Cabin

Electronic monitor panel with digital show and adjustable steer-wheel make operator easy and comfortable. Half-automatic control of KD switch owns perfect control performance. The cabin features luxury interior decoration, beautiful appearance, and good visibility.
