947H Changlin 947H Specifications & Technical Data (2017—2026)

The Changlin 947H is a wheel loader manufactured since 2017. It has a weight of 13.2 tons and a transport length of 7.248 meters. …

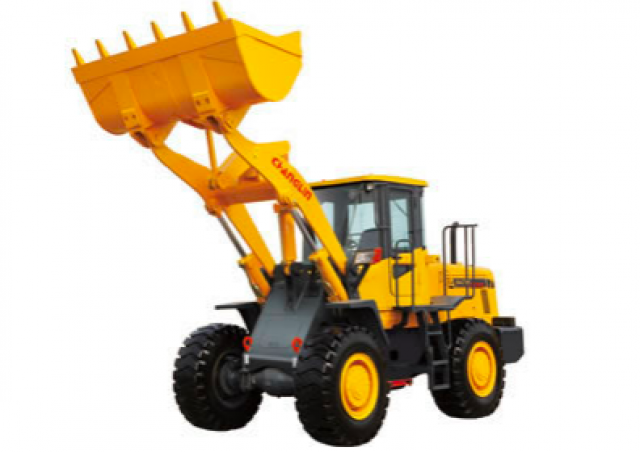

The Changlin 947H is a wheel loader manufactured since 2017. It has a weight of 13.2 tons and a transport length of 7.248 meters. The bucket capacity is 2.3 cubic meters with a width of 2.685 meters. The maximum discharge height is 2.815 meters. It has a travel speed of 36 km/h and a transport width of 2.57 meters. The transport height is 3.415 meters. The lifting force is 134 kN and the turning radius outside is 6.3 meters. The minimum bucket capacity is also 2.3 cubic meters.

Wheel Loaders Changlin 947H

Technical specs - 947H Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.2 t
Standard tyres
20.5-25-16PR
Bucket width
2.685 m
Bucket capacity
2.3 m³
Bucket capacity min.
2.3 m³
Transport length
7.248 m
Transport width
2.57 m
Transport height
3.415 m
Travel speed
36 km/h
Max. discharge height
2.815 m
Turning radius outside
6.3 m
Lifting force
134 kN
Model series
H
Engine manuf.
Cummins
Engine type
6BT5.9-C175
Engine power
129 kW
Displacement
5.9 l
Revolutions at max torque
1500 rpm
Max. torque
651 Nm
Cylinder bore x stroke
102x120 mm

More technical details, like: bucket capacity max., steering mode, dimension lxwxh, no. of cylinders, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Changlin 947H FAQ

When was the Changlin 947H manufactured?

The Changlin 947H was first produced in 2017.

How much does the Changlin 947H wheel loader weigh?

The Changlin 947H wheel loader weighs 13.2 tons.

What are the transport dimensions of the Changlin 947H wheel loader?

The Changlin 947H has a transport length of 7.25 meters, a transport width of 2.57 meters, and a transport height of 3.42 meters.

What is the travel speed of the Changlin 947H wheel loader?

The Changlin 947H wheel loader has a travel speed of 36 km/h.

What are the standard tyres specifications of the Changlin 947H wheel loader?

The Changlin 947H wheel loader is equipped with standard tyres sized 20.5-25-16PR.

What is the turning radius of the Changlin 947H wheel loader?

The Changlin 947H wheel loader has an outside turning radius of 6.3 meters.

What is the lifting force of the Changlin 947H wheel loader?

The Changlin 947H wheel loader has a lifting force of 134 kN.

What is the maximum discharge height of the Changlin 947H?

The Changlin 947H has a maximum discharge height of 2.82 meters.

What are the bucket specifications of the Changlin 947H wheel loader?

The Changlin 947H wheel loader has a bucket capacity of 2.3 cubic meters, a minimum bucket capacity of 2.3 cubic meters, and a bucket width of 2.69 meters.

How much is a Changlin 947H Wheel loader (2017u20132025) worth?

The residual value of the Changlin 947H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Changlin 947H overview

Hydraulic system

High Efficiency Hydraulic System

Pipe joints adopted advanced sealing method ensure better sealing effect. Combined flow of two pumps saves energy and increases efficiency. Hydraulic tank with vacuum device ensures easy maintenance and fixing of hydraulic system.


Advanced & Reliable Brake System

Axle housing and hub reduction adopted separate structure that features low maintenance cost. Dual piping service brake with caliper disc brake ensures safety and reliability.
