IT 38 GII Caterpillar IT 38 GII Specifications & Technical Data (2006—2026)

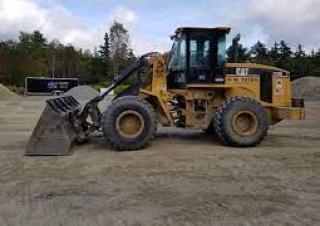

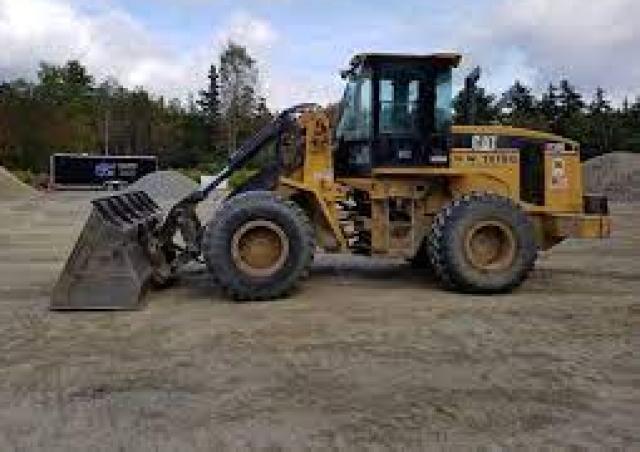

The Caterpillar IT 38 GII is a wheel loader manufactured since 2006. It has a weight of 14.58 tons and a transport length of 7.63 …

The Caterpillar IT 38 GII is a wheel loader manufactured since 2006. It has a weight of 14.58 tons and a transport length of 7.63 meters. The bucket width is 2.71 meters, and it has a maximum discharge height of 2.7 meters. The travel speed of this machine is 38.8 km/h. The transport width is 2.71 meters, and the transport height is 3.33 meters. It has a lifting force of 110 kN. The maximum bucket capacity is 2.8 cubic meters, while the minimum bucket capacity is 2.21 cubic meters.

Wheel Loaders Caterpillar IT 38 GII

Technical specs - IT 38 GII Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.58 t
Standard tyres
20.5-R25
Bucket width
2.71 m
Bucket capacity min.
2.21 m³
Bucket capacity max.
2.8 m³
Transport length
7.63 m
Transport width
2.71 m
Transport height
3.33 m
Travel speed
38.8 km/h
Max. discharge height
2.7 m
Lifting force
110 kN
Model series
IT

More technical details, like: bucket capacity, steering mode, turning radius outside, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Caterpillar IT 38 GII FAQ

When was the Caterpillar IT 38 GII manufactured?

The Caterpillar IT 38 GII was first produced in 2006.

How much does the Caterpillar IT 38 GII weigh?

The Caterpillar IT 38 GII weighs 14.58 tons.

What are the transport dimensions of the Caterpillar IT 38 GII wheel loader?

The Caterpillar IT 38 GII has a transport length of 7.63 meters, a transport width of 2.71 meters, and a transport height of 3.33 meters.

What is the travel speed of the Caterpillar IT 38 GII wheel loader?

The Caterpillar IT 38 GII has a travel speed of 38.8 km/h.

What are the undercarriage specifications of the Caterpillar IT 38 GII?

The Caterpillar IT 38 GII is equipped with standard tyres sized 20.5-R25.

What is the lifting force of the Caterpillar IT 38 GII?

The Caterpillar IT 38 GII has a lifting force of 110 kN.

What is the maximum discharge height of the Caterpillar IT 38 GII?

The Caterpillar IT 38 GII has a maximum discharge height of 2.7 meters.

What are the bucket specifications of the Caterpillar IT 38 GII wheel loader?

The Caterpillar IT 38 GII wheel loader has a bucket width of 2.71 meters, with a maximum capacity of 2.8 cubic meters and a minimum capacity of 2.21 cubic meters.
