988 G Caterpillar 988 G Specifications & Technical Data (2000—2004)

Model rating: 10,00 / 10

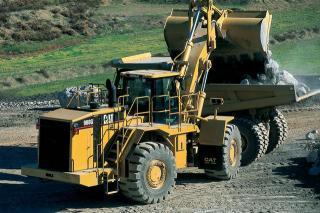

The Caterpillar 988 G is a wheel loader manufactured by Caterpillar from 2000 to 2004. It has a weight of 50 tons and a transport …

The Caterpillar 988 G is a wheel loader manufactured by Caterpillar from 2000 to 2004. It has a weight of 50 tons and a transport length of 12.6 meters. The bucket capacity is 6.3 cubic meters, with a bucket width of 3.98 meters. The maximum discharge height is 4.46 meters. It has a travel speed of 38.7 km/h and a transport width and height of 3.98 meters and 4.15 meters respectively. The lifting force of this machine is 460 kN, and it has a turning radius outside of 8.83 meters. The bucket capacity ranges from a minimum of 6.3 cubic meters to a maximum of 7 cubic meters. It is equipped with air conditioning as special equipment.

988 G

Years of manufacture: 2000—2004

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 988 G Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 50 t

Standard tyres: 35/65-33

Bucket width: 3.98 m

Bucket capacity: 6.3 m³

Bucket capacity min.: 6.3 m³

Bucket capacity max.: 7 m³

Transport length: 12.6 m

Transport width: 3.98 m

Transport height: 4.15 m

Travel speed: 38.7 km/h

Max. discharge height: 4.46 m

Turning radius outside: 8.83 m

Lifting force: 460 kN

Engine manuf.: Caterpillar

Engine type: 3456 EUI

Engine power: 354 kW

Displacement: 15.8 l

Revolutions at max torque: 1900 rpm

More technical details, like: steering mode, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

988 G Caterpillar Specification for Europe (DE)

Caterpillar 988 G FAQ

When was the Caterpillar 988 G manufactured?

The Caterpillar 988 G was manufactured from 2000 to 2004.

How much does the Caterpillar 988 G wheel loader weigh?

The Caterpillar 988 G wheel loader weighs 50 tons.

What are the transport dimensions of the Caterpillar 988 G wheel loader?

The Caterpillar 988 G has a transport length of 12.6 meters, a transport width of 3.98 meters, and a transport height of 4.15 meters.

What is the travel speed of the Caterpillar 988 G wheel loader?

The Caterpillar 988 G has a travel speed of 38.7 km/h.

What is the standard tyre size of the Caterpillar 988 G wheel loader?

The Caterpillar 988 G wheel loader has standard tyres sized 35/65-33.

What is the turning radius of the Caterpillar 988 G wheel loader?

The Caterpillar 988 G wheel loader has an outside turning radius of 8.83 meters.

What is the lifting force of the Caterpillar 988 G wheel loader?

The Caterpillar 988 G wheel loader has a lifting force of 460 kN.

What is the maximum discharge height of the Caterpillar 988 G wheel loader?

The Caterpillar 988 G wheel loader has a maximum discharge height of 4.46 meters.

What are the specifications of the bucket on the Caterpillar 988 G wheel loader?

The bucket on the Caterpillar 988 G has a capacity ranging from 6.3 to 7 cubic meters and a width of 3.98 meters.
