972K Caterpillar 972K Specifications & Technical Data (2012—2015)

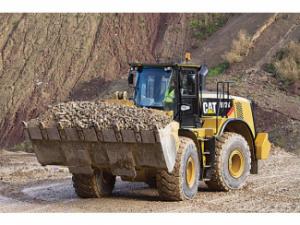

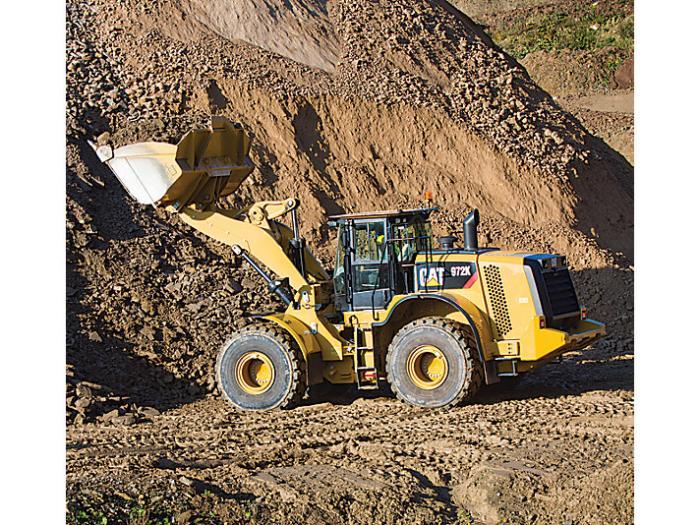

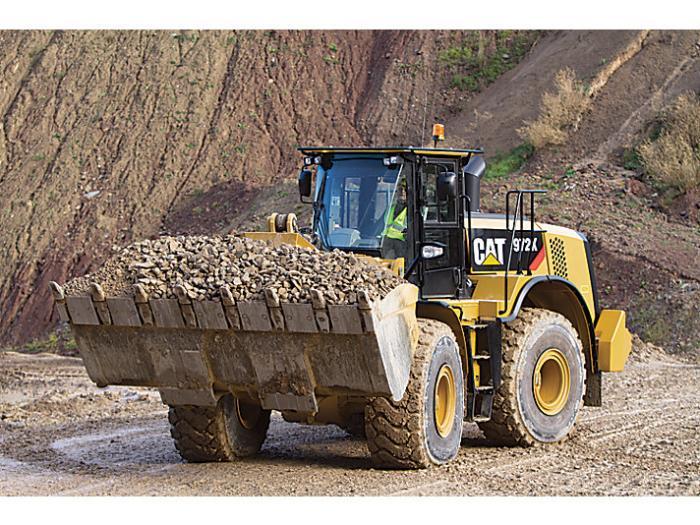

The Caterpillar 972K is a wheel loader manufactured from 2012 to 2015. It has a weight of 26.21 tons and a bucket capacity ranging…

The Caterpillar 972K is a wheel loader manufactured from 2012 to 2015. It has a weight of 26.21 tons and a bucket capacity ranging from 2.9 to 9.9 cubic meters, with a bucket width of 3.22 meters. The maximum discharge height is 4.46 meters, and it has a travel speed of 36.9 km/h. The lifting force is 196 kN, and it is equipped with air conditioning.

972K

Years of manufacture: 2012—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 972K Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 26.21 t

Standard tyres: 26.5 R 25

Bucket width: 3.22 m

Bucket capacity: 2.9 m³

Bucket capacity min.: 2.9 m³

Bucket capacity max.: 9.9 m³

Steering mode: KL

Travel speed: 36.9 km/h

Max. discharge height: 4.46 m

Lifting force: 196 kN

Engine manuf.: Caterpillar

Engine type: C9.3 Acert

Engine power: 215 kW

Displacement: 9.3 l

Revolutions at max torque: 1800 rpm

More technical details, like: transport length, transport width, transport height, turning radius outside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 972K FAQ

When was the Caterpillar 972K manufactured?

The Caterpillar 972K was manufactured from 2012 to 2015.

How much does the Caterpillar 972K wheel loader weigh?

The Caterpillar 972K wheel loader weighs 26.21 tons.

What is the travel speed of the Caterpillar 972K wheel loader?

The Caterpillar 972K wheel loader has a travel speed of 36.9 km/h.

What is the standard tyre size of the Caterpillar 972K wheel loader?

The Caterpillar 972K wheel loader is equipped with standard tyres sized 26.5 R 25.

What is the steering mode of the Caterpillar 972K?

The Caterpillar 972K has articulated-frame steering.

What is the lifting force of the Caterpillar 972K wheel loader?

The Caterpillar 972K wheel loader has a lifting force of 196 kN.

What is the maximum discharge height of the Caterpillar 972K?

The Caterpillar 972K has a maximum discharge height of 4.46 meters.

What are the specifications of the bucket on the Caterpillar 972K wheel loader?

The Caterpillar 972K wheel loader has a bucket with a capacity ranging from 2.9 to 9.9 cubic meters and a width of 3.22 meters.

How much is a Caterpillar 972K Wheel loader (2012u20132015) worth?

The residual value of the Caterpillar 972K depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
