966L Caterpillar 966L Specifications & Technical Data (2019—2026)

The Caterpillar 966L is a wheel loader model manufactured since 2019. With a weight of 23.22 tons, it has a transport length of 8.…

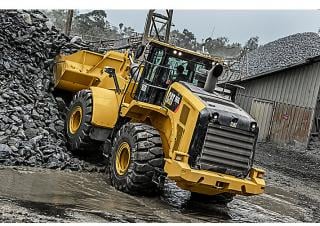

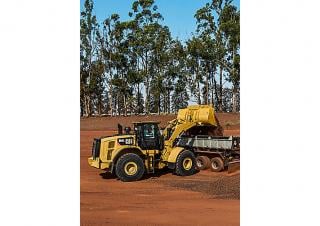

The Caterpillar 966L is a wheel loader model manufactured since 2019. With a weight of 23.22 tons, it has a transport length of 8.75 meters and a transport width and height of 2.991 meters and 3.859 meters, respectively. It can reach a maximum discharge height of 2.991 meters and has a travel speed of 39.5 km/h. The wheel loader has a lifting force of 173 kN and a turning radius outside of 6.761 meters. Its bucket capacity ranges from a minimum of 7.4 cubic meters.

966L

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 966L Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 23.22 t

Standard tyres: 26.5R25

Bucket capacity min.: 7.4 m³

Transport length: 8.75 m

Transport width: 2.991 m

Transport height: 3.859 m

Travel speed: 39.5 km/h

Max. discharge height: 2.991 m

Turning radius outside: 6.761 m

Lifting force: 173 kN

Engine manuf.: Caterpillar

Engine type: C9.3 Acert

Engine power: 207 kW

Displacement: 9.3 l

Max. torque: 1507 Nm

Cylinder bore x stroke: 115x149 mm

Emission level: Tier 3/ IIIA

More technical details, like: bucket width, bucket capacity, bucket capacity max., steering mode, model series, dimension lxwxh, revolutions at max torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 966L FAQ

When was the Caterpillar 966L manufactured?

The Caterpillar 966L was first produced in 2019.

How much does the Caterpillar 966L wheel loader weigh?

The Caterpillar 966L wheel loader weighs 23.22 tons.

What are the transport dimensions of the Caterpillar 966L wheel loader?

The Caterpillar 966L has a transport length of 8.75 meters, a transport width of 2.99 meters, and a transport height of 3.86 meters.

What is the travel speed of the Caterpillar 966L wheel loader?

The Caterpillar 966L has a travel speed of 39.5 km/h.

What is the size of the standard tyres on the Caterpillar 966L wheel loader?

The standard tyres on the Caterpillar 966L wheel loader are sized 26.5R25.

What is the turning radius of the Caterpillar 966L wheel loader?

The Caterpillar 966L wheel loader has an outside turning radius of 6.761 meters.

What is the lifting force of the Caterpillar 966L wheel loader?

The Caterpillar 966L wheel loader has a lifting force of 173 kN.

What is the maximum discharge height of the Caterpillar 966L wheel loader?

The Caterpillar 966L wheel loader has a maximum discharge height of 2.99 meters.

What is the minimum bucket capacity of the Caterpillar 966L wheel loader?

The minimum bucket capacity of the Caterpillar 966L wheel loader is 7.4 cubic meters.
